Yamaha Outboard Parts - CRANKSHAFT & PISTON - F5AMH (2011) | Flood Marine
New Search
Parts
New Outboards
Home
F5AMH (2011)
CRANKSHAFT & PISTON

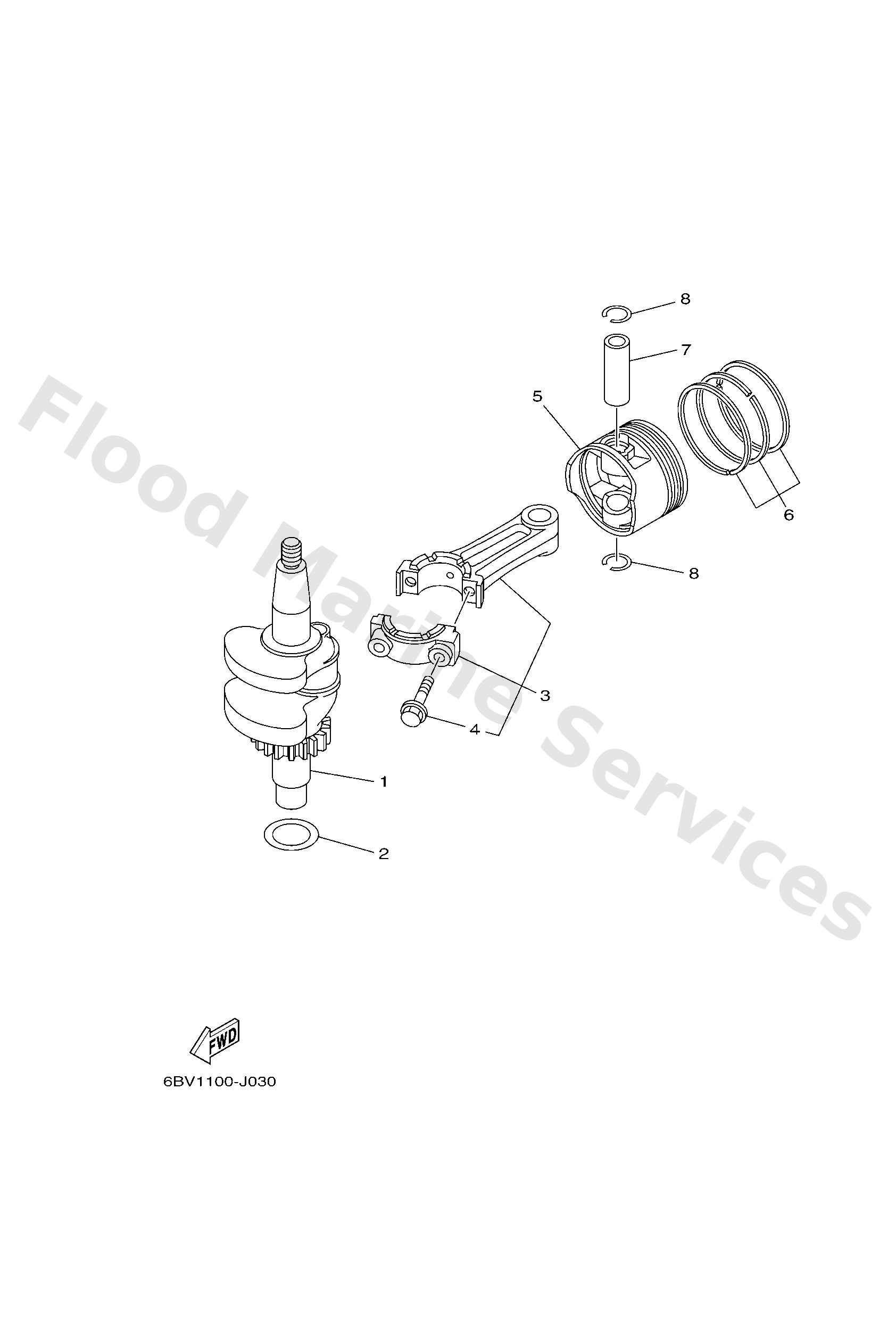

Diagram: CRANKSHAFT & PISTON
Parts List
Reference
Description
Price
1
6BXE141000
Crankshaft
Loading…
↗
2
90201266P2
Washer, plate(ja8)
Loading…
↗
3
6BX1165000
Connecting rod ass
Loading…
↗
4
67D1165400
Bolt, connecting rod
Loading…
↗
5
6BXE16310096
Piston (std)
Loading…
↗
5
6BXE163500
AP
Pisron (0,25mm o/s)
Loading…
↗
5
6BXE163600
AP
Piston (0.50mm o/s
Loading…
↗
6
6BXE160300
Piston ring set (s
Loading…
↗
6
6BXE160400
AP
Piston ring set (0,25mm)
Loading…
↗
6
6BXE160500
AP
Piston Ring Set (0.50Mm O/S)
Loading…
↗
7
6BX1163300
Pin, piston
Loading…
↗
8
9345016068
Circlip (4g0)
Loading…
↗
