Yamaha Outboard Parts - CYLINDER & CRANKCASE 2 - LZ300AETO (2007) | Flood Marine

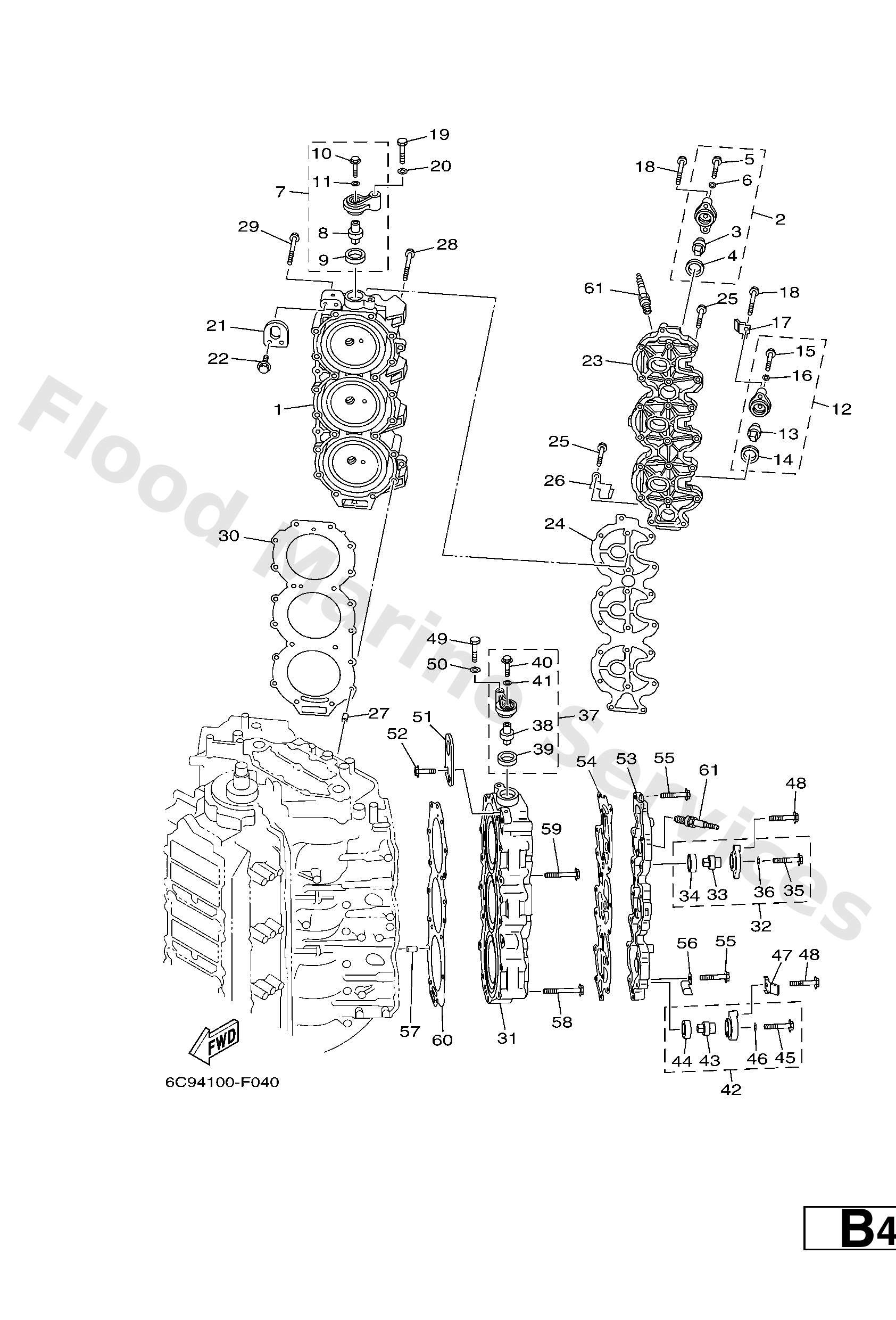

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

Reference
Description
Price


1
6D011111001S
-
Loading…

↗
2
67F1130100
Anode cover assembly
Loading…

↗
3
67F1132501
Anode
Loading…

↗
4
67F1132800
Grommet, anode
Loading…

↗
5
9010506M07
Bolt (689)
Loading…

↗
6
9043006M03
Gasket (6f5)
Loading…

↗
7
69J1130100
Anode cover assembly
Loading…

↗
12
60V1130100
Anode cover assembly
Loading…

↗
17
60V1253500
Plate
Loading…

↗
18
9757508550
Bolt, with washer
Loading…

↗
19
9707508035
Bolt(70w)
Loading…

↗
20
9299508600
Washer, plain (663)
Loading…

↗
21
68F1111900
Hanger, engine
Loading…

↗
22
9011906MA2
Bolt, with washer
Loading…

↗
23
60V11191001S
-
Loading…

↗
24
60V1119300
Gasket, head cover 1
Loading…

↗
25
9011906MA4
Bolt, with washer
Loading…

↗
26
68F8391900
Clamp, harness
Loading…

↗
27
9959010114
Pin, dowel
Loading…

↗
28
9011908MA5
Bolt, with washer
Loading…

↗
29
9011908MA8
Bolt, with washer
Loading…

↗
30
6D01118100
Gasket, cylinder head 1
Loading…

↗
31
6D011121001S
-
Loading…

↗
51
69J1111E00
Hanger, engine 2
Loading…

↗
53
60V11192001S
Cover, cylinder head 2
Loading…

↗
61
9470200405
Plug, spark (bkr6eku)
Loading…

↗
