D150HETO (2002)
CYLINDER. CRANKCASE 1

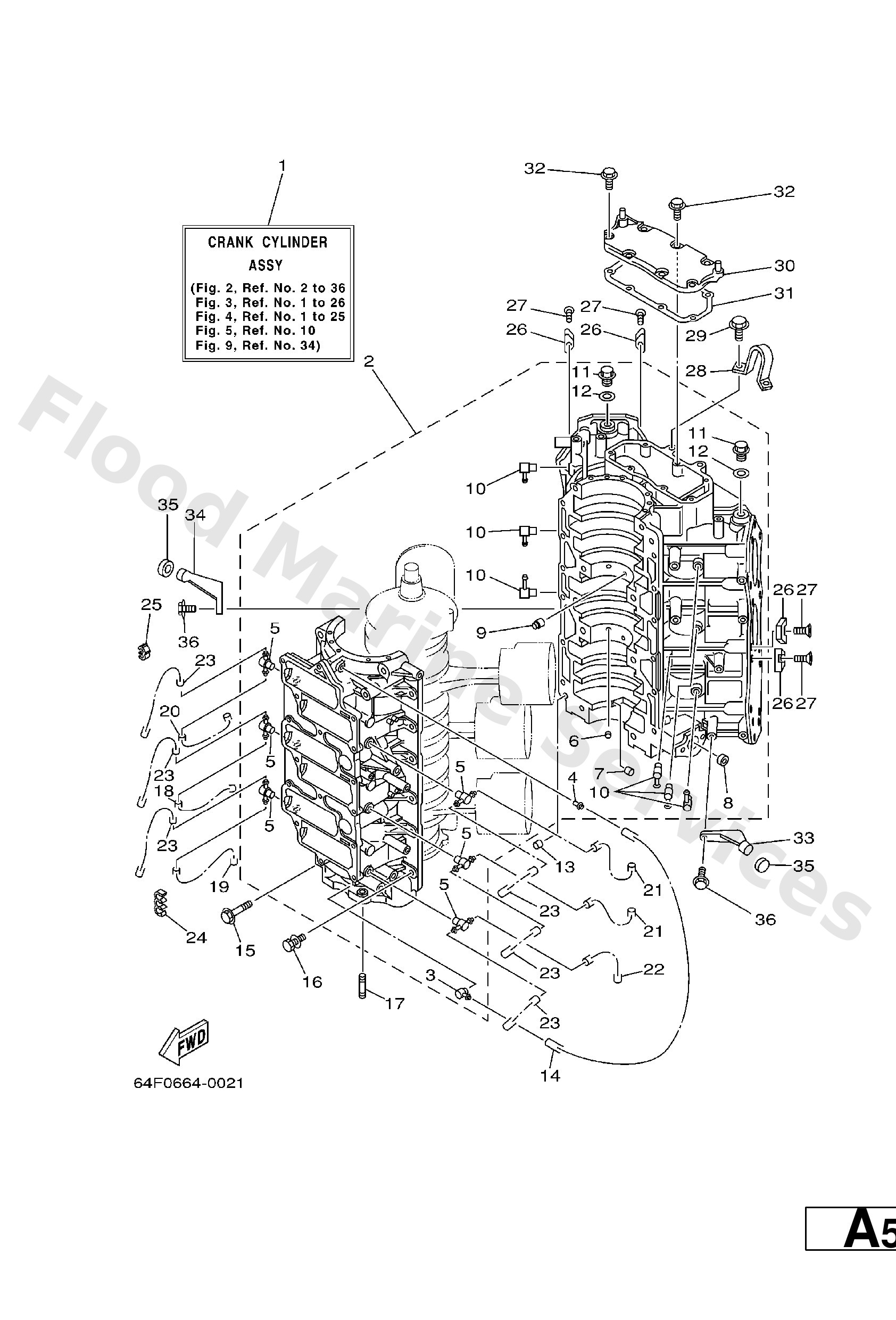

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
6E51137200
Nipple, hose
Loading…
↗
4
6241448500
Pipe, joint
Loading…
↗
5
6F61137200
Nipple, hose
Loading…
↗
6
6241137900
Valve, check
Loading…
↗
7
9038406M07
Bush, bimetal formed(6r3)
Loading…
↗
8
9038414M09
Bush, bimetal formed(6r3)
Loading…
↗
9
6631151801
Lock, bearing
Loading…
↗
10
6461137000
Check valve assembly
Loading…
↗
11
9034014M00
Plug, straight screw(62y)
Loading…
↗
12
9043014115
Gasket (663)
Loading…
↗
13
9360812063
Pin, dowel (626)
Loading…
↗
14
9044507M10
-
Loading…
↗
15
9010510M20
Bolt (6e5)
Loading…
↗
16
9011908M94
Bolt, with washer
Loading…
↗
17
9011608M45
Bolt, stud (6e5)
Loading…
↗
18
9044507M11
Hose (l770)
Loading…
↗
19
9044507M09
Hose (l390)
Loading…
↗
20
9044507M12
Hose (L300)
Loading…
↗
21
9044507M08
Hose (l390)
Loading…
↗
22
9044507M90
Hose (l390)
Loading…
↗
23
9044507M34
Hose (L260)
Loading…
↗
24
9046407M05
Clamp (6g5)
Loading…
↗
25
9046407M20
Clamp(6h0)
Loading…
↗
26
6E51132500
Anode
Loading…
↗
27
9878004015
Screw, flat head(ga5)
Loading…
↗
28
67H1111901
Hanger, engine
Loading…
↗
29
9011908MA3
Bolt, with washer
Loading…
↗
30
6K711371011S
Cover
Loading…
↗
31
6E511381A2
Gasket 1
Loading…
↗
32
9011906MA2
Bolt, with washer
Loading…
↗
33
6E542761001S
Stopper
Loading…
↗
34
6E542762001S
Stopper
Loading…
↗
35
68F4453300
Damper, upper mount rubber
Loading…
↗
