115AETOL (1996)
Carburetor

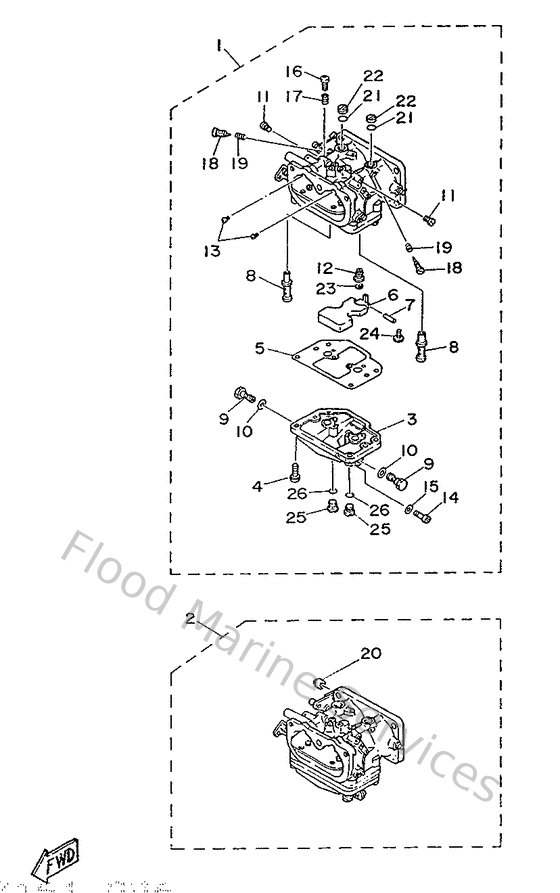

Diagram: Carburetor
Parts List
Reference
Description
Price
4
978030501700
Screw panhead (669)
Loading…
↗
5
6E5143840200
Gasket, float chamber
Loading…
↗
7
6E5143860100
Pin, float
Loading…
↗
8
6E5143410300
Nozzle, Main
Loading…
↗
10
1J2143980000
Packing
Loading…
↗
11
6G4143424200
Jet, Pilot (#84)
Loading…
↗
12
6G4143901700
Valve Seat Assembly
Loading…
↗
14
6E5143830000
Screw, Drain
Loading…
↗
15
6E5143980000
Gasket
Loading…
↗
16
985800402000
Screw, pan head (7h3)
Loading…
↗
17
647143340000
Spring, air adjusting.
Loading…
↗
18
6G5143230000
Screw Air Adjusting
Loading…
↗
19
650142230000
Spring, Drain Valve
Loading…
↗
20
682412910000
Bushing
Loading…
↗
22
6G5143280000
Screw, Pilot Stop
Loading…
↗
23
367141950000
Washer, valve seat
Loading…
↗
24
989020401000
Screw, binding (m01)
Loading…
↗
25
6A4143940000
Valve, drain
Loading…
↗
26
652143970000
Ring, o
Loading…
↗
