Yamaha Outboard Parts - Carburetor - 25QEO (1994) | Flood Marine

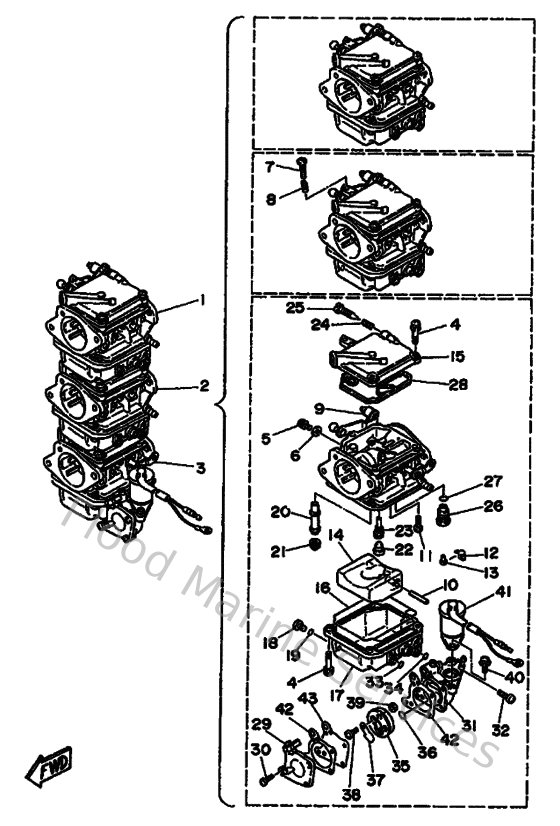

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


3
6H5143031200
Carburetor Assembly 3
Loading…

↗
4
979800411400
Screw, pan head(ga5)
Loading…

↗
5
6K5145920000
Screw
Loading…

↗
6
902010565200
Washer, plate(65j)
Loading…

↗
7
63V145230000
Screw, stop
Loading…

↗
8
905011032600
Spring coil(663)(carb)
Loading…

↗
9
6H2145780000
Collar
Loading…

↗
10
6H4145480000
Pin, float arm
Loading…

↗
11
985800400800
Screw, pan head (713)
Loading…

↗
12
633141590000
Clip
Loading…

↗
13
676141860000
Pin, valve
Loading…

↗
14
6H4149850100
Float
Loading…

↗
15
6H4141460000
Plate
Loading…

↗
16
6H4149840000
Gasket, float chamber
Loading…

↗
17
6H4149801000
Body, Float Chamber
Loading…

↗
18
6H3149920000
Screw, drain
Loading…

↗
19
932100423000
O-ring (371)
Loading…

↗
20
6H5149470700
Jet, Needle
Loading…

↗
21
676149433300
Jet, main (#130)
Loading…

↗
22
679149660000
Rubber cap
Loading…

↗
23
6H5149481300
Jet (#65)
Loading…

↗
24
679145550000
Spring
Loading…

↗
25
692149230000
Screw, adjusting
Loading…

↗
26
6H4145900100
Needle valve assembly
Loading…

↗
27
932100422800
O-ring (371)
Loading…

↗
28
6H4141470000
O-ring
Loading…

↗
29
6H4244520100
Cover
Loading…

↗
30
6H4145670000
Screw
Loading…

↗
32
6H4145921000
Screw
Loading…

↗
33
6H4145610000
O-ring
Loading…

↗
34
6H4145620000
O-ring
Loading…

↗
35
6H4244130000
Body 2
Loading…

↗
36
6H4244860000
O-ring
Loading…

↗
37
6L5244210000
Valve, check
Loading…

↗
38
989800300600
Screw, bind(6g1)
Loading…

↗
39
953800360000
Nut (6g8)
Loading…

↗
40
979800531000
Screw, with washer(6k5)
Loading…

↗
41
6H4861200000
Solenoid Valve Assembly
Loading…

↗
42
6H5244340000
Gasket, body
Loading…

↗
43
6H4244110000
Diaphragm
Loading…

↗
