Yamaha Outboard Parts - Carburetor - 30DMH (1986) | Flood Marine

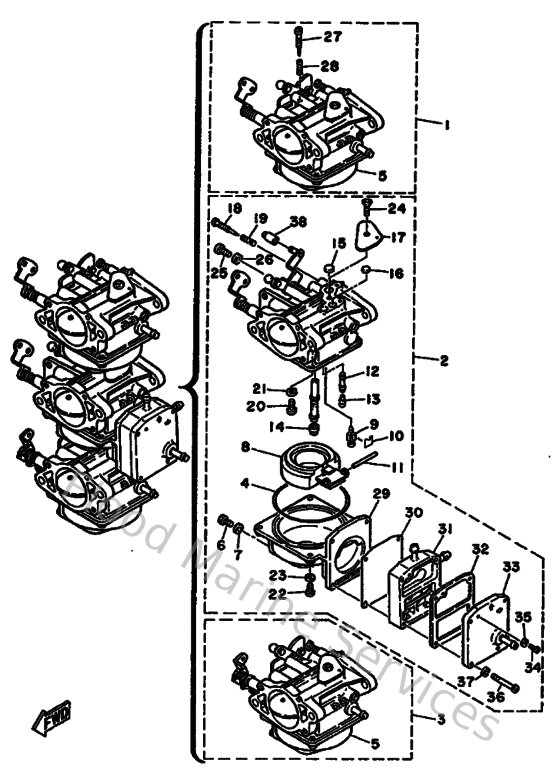

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
6J8143010000
Carburetor assembly 1
Loading…

↗
2
6J8143020000
Carburetor assembly 2
Loading…

↗
3
6J8143030000
Carburetor assembly 3
Loading…

↗
4
6J8149840000
Gasket, float chamber
Loading…

↗
5
6J8149800000
Body Float Chamber
Loading…

↗
6
6J8149910000
Screw, drain
Loading…

↗
7
6J8149950000
Gasket, drin screw
Loading…

↗
8
6J8149850000
Float
Loading…

↗
9
6E5145460000
Valve, needle
Loading…

↗
10
6J8141590000
Clip
Loading…

↗
11
6J8145480000
Pin, float arm
Loading…

↗
12
6J81492F2500
Jet, air slow (#50)
Loading…

↗
13
6J8149660000
Plug
Loading…

↗
14
6J81492E5100
Jet, main (#102)
Loading…

↗
15
6J8141260000
Plug
Loading…

↗
16
6J8141180000
Plug
Loading…

↗
18
6J8149230000
Screw, pilot
Loading…

↗
19
6J8145550000
Spring
Loading…

↗
20
985800401000
Screw, pan head (e56)
Loading…

↗
21
929030410000
Ybs67-4 washer, spring
Loading…

↗
22
978030401200
Screw, pan head (686)
Loading…

↗
23
929900410000
Ybs67-4 washer, spring
Loading…

↗
24
987010500800
Screw Flat
Loading…

↗
25
6J8145920000
Screw
Loading…

↗
26
929900560000
Washer, plain (646)
Loading…

↗
27
6J8145230000
Screw, stop
Loading…

↗
28
6J8143340000
Spring, throttle
Loading…

↗
29
6J8149810000
Body, Float Chamber
Loading…

↗
30
6J8244710000
Diaphragm
Loading…

↗
31
6J8244120000
Body comp (with valve)
Loading…

↗
32
6J8244320000
Gasket, fuel pump 2
Loading…

↗
33
6J8244520000
Cover
Loading…

↗
36
978030402400
Screw, pan head
Loading…

↗
38
6J8145780000
Collar
Loading…

↗
