50DEMTO (1987)
Carburetor

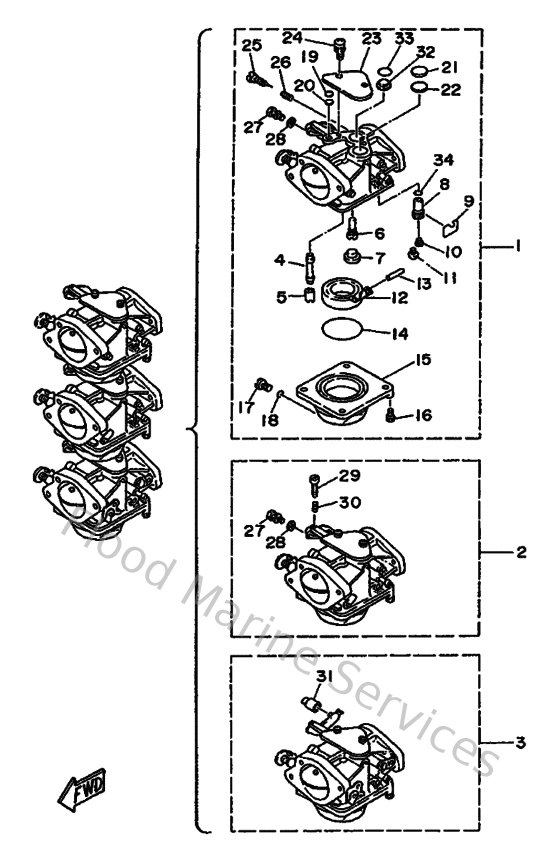

Diagram: Carburetor
Parts List
Reference
Description
Price
1
6H5143010500
Carburetor assembly 1
Loading…
↗
2
6H5143020500
Carburetor assembly 2
Loading…
↗
5
676149433300
Jet, main (#130)
Loading…
↗
6
6H5149481500
Jet (#70)
Loading…
↗
7
676149660000
Rubber cap
Loading…
↗
8
6H3145900000
Needle valve assembly
Loading…
↗
9
633141590000
Clip
Loading…
↗
10
676141860000
Pin, valve
Loading…
↗
11
985020400800
Screw, pan head (713)
Loading…
↗
12
6G1149850000
Float comp.
Loading…
↗
13
688145480000
Pin, arm
Loading…
↗
14
6G1149840000
Gasket, float chamber
Loading…
↗
15
6H2149800000
Body, float chamber
Loading…
↗
16
979800411400
Screw, pan head(ga5)
Loading…
↗
17
663149920000
Screw, drain
Loading…
↗
18
932100423000
O-ring (371)
Loading…
↗
19
663141260000
Packing
Loading…
↗
20
663145270000
Plate
Loading…
↗
21
688141260000
Packing
Loading…
↗
22
688145270000
Plate
Loading…
↗
25
692149230000
Screw, adjusting
Loading…
↗
26
697145550000
Spring
Loading…
↗
27
663145920000
Screw
Loading…
↗
28
902010565200
Washer, plate(65j)
Loading…
↗
29
63V145230000
Screw, stop
Loading…
↗
30
905011032600
Spring coil(663)(carb)
Loading…
↗
31
676145780000
Collar (Lower)
Loading…
↗
32
6H3145780000
Collar
Loading…
↗
33
9321015M5200
O-ring (6e9)
Loading…
↗
34
932100422800
O-ring (371)
Loading…
↗
