8CEM (1985)
Carburetor

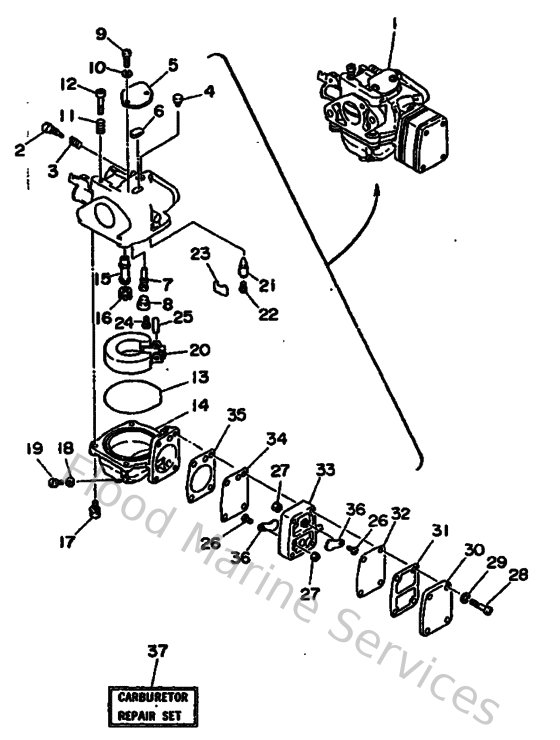

Diagram: Carburetor
Parts List
Reference
Description
Price
1
6G1143010000
Carburetor assembly 1
Loading…
↗
2
679149230000
Screw, pilot
Loading…
↗
3
679145550000
Spring
Loading…
↗
4
6G1149660000
Cap
Loading…
↗
5
6G1145270000
Plate
Loading…
↗
6
6G1141260000
Packing
Loading…
↗
7
6G1149480500
Jet (#45)
Loading…
↗
8
676149660000
Rubber cap
Loading…
↗
9
985800401000
Screw, pan head (e56)
Loading…
↗
10
929030410000
Ybs67-4 washer, spring
Loading…
↗
11
905011032600
Spring coil(663)(carb)
Loading…
↗
12
663145230000
Screw, stop
Loading…
↗
13
6G1149840000
Gasket, float chamber
Loading…
↗
14
6G1149800100
Body, float chamber
Loading…
↗
15
6G1149470000
Nozzle, main
Loading…
↗
16
676149432600
Jet, main (#98)
Loading…
↗
17
979800411400
Screw, pan head(ga5)
Loading…
↗
18
6G1143980000
Washer
Loading…
↗
19
6G1149920000
Screw, drain
Loading…
↗
20
6G1149850000
Float comp.
Loading…
↗
21
6G1145460000
Valve, needle
Loading…
↗
22
676141860000
Pin, valve
Loading…
↗
23
633141590000
Clip
Loading…
↗
24
985020400800
Screw, pan head (713)
Loading…
↗
25
688145480000
Pin, arm
Loading…
↗
26
989020300600
Screw, binding
Loading…
↗
27
901790347800
Nut(7h6)
Loading…
↗
28
978030402500
Screw, pan head
Loading…
↗
30
6G1244520000
Cover, pump
Loading…
↗
31
6G1244320000
Packing
Loading…
↗
32
6G1244710000
Diaphragm
Loading…
↗
33
6G1244120000
Body 1
Loading…
↗
34
6G1244110000
Diaphragm
Loading…
↗
35
6G1244310000
Gasket, fuel pump 1
Loading…
↗
36
6G1244210000
Valve, check
Loading…
↗
37
6G1W00930000
Carburetor repair kit
Loading…
↗
