Yamaha Outboard Parts - Carburetor - 9.9FMH (1996) | Flood Marine

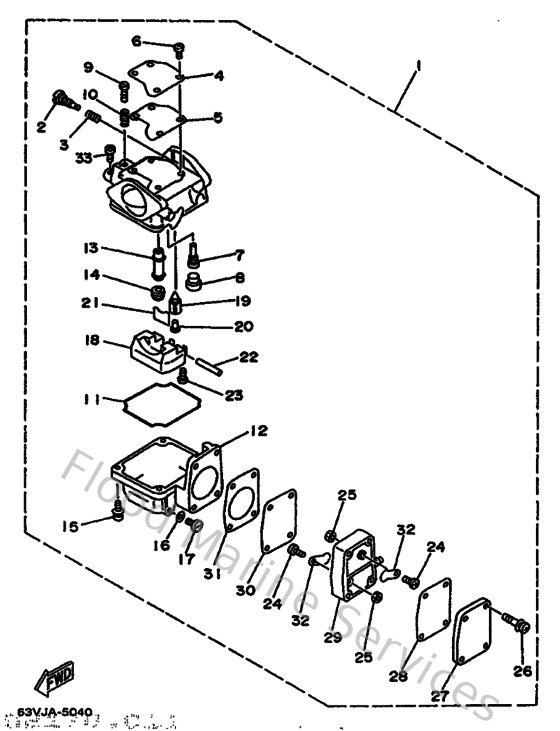

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
63V143010000
Carburetor assembly 1
Loading…

↗
2
679149230000
Screw, pilot
Loading…

↗
3
679145550000
Spring
Loading…

↗
4
63V145270000
Plate
Loading…

↗
5
63V141260000
Gasket
Loading…

↗
6
985800401000
Screw, pan head (e56)
Loading…

↗
7
63V149480600
Jet (#48)
Loading…

↗
8
679149660000
Rubber cap
Loading…

↗
9
63V145230000
Screw, stop
Loading…

↗
10
905011032600
Spring coil(663)(carb)
Loading…

↗
11
63V149840000
Gasket, float chamber
Loading…

↗
12
63V149800000
Body, float chamber
Loading…

↗
13
63V149470000
Jet, needle
Loading…

↗
14
676149432900
Jet, main (#110)
Loading…

↗
15
979800411400
Screw, pan head(ga5)
Loading…

↗
16
6G1143980000
Washer
Loading…

↗
17
65W149920000
Screw, drain
Loading…

↗
18
63V149850000
Float
Loading…

↗
19
6G1145460000
Valve, needle
Loading…

↗
20
676141860000
Pin, valve
Loading…

↗
21
663141590000
Clip
Loading…

↗
22
6H4145480000
Pin, float arm
Loading…

↗
23
985800400800
Screw, pan head (713)
Loading…

↗
24
989800300600
Screw, bind(6g1)
Loading…

↗
25
953800360000
Nut (6g8)
Loading…

↗
26
979800412500
Screw, with washer
Loading…

↗
27
6G1244520000
Cover, pump
Loading…

↗
28
63V244110000
Diaphragm
Loading…

↗
29
6G1244120100
Body 1
Loading…

↗
30
6G1244110000
Diaphragm
Loading…

↗
31
6G1244310100
Gasket, fuel pump 1
Loading…

↗
32
6L5244210000
Valve, check
Loading…

↗
33
985800400600
Screw, pan head (7h3)
Loading…

↗
