Yamaha Outboard Parts - Carburetor - E8DMH (1997) | Flood Marine

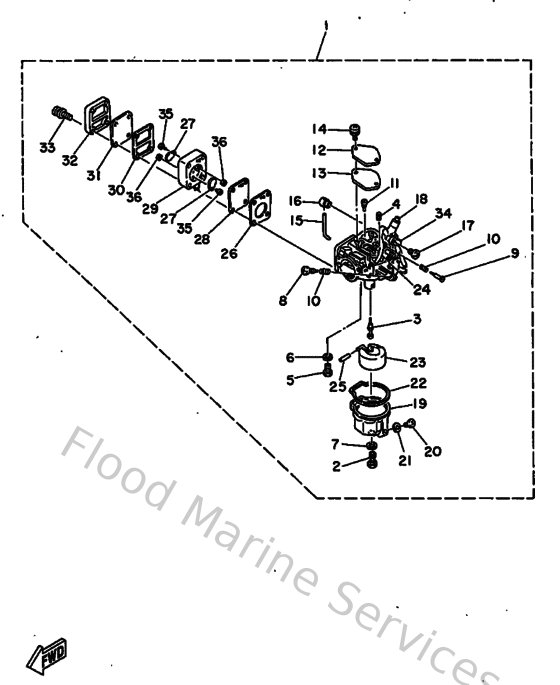

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
677143010800
Carburetor assembly 1
Loading…

↗
2
677143434000
Jet, main (#80)
Loading…

↗
3
677143410000
Nozzle, main
Loading…

↗
4
647143422300
Jet, pilot (#46)
Loading…

↗
5
6E8143901200
Needle valve assembly
Loading…

↗
6
367141950000
Washer, valve seat
Loading…

↗
7
1J2143980000
Packing
Loading…

↗
8
985800401400
Screw, pan head(ga5)
Loading…

↗
9
647143230000
Screw, air adjusting
Loading…

↗
10
646142120100
Spring, pilot adjusting
Loading…

↗
11
647143260000
Screw, guide
Loading…

↗
12
677141570100
Cover, Mixing
Loading…

↗
13
677142270100
Gasket
Loading…

↗
14
985800401000
Screw, pan head (e56)
Loading…

↗
15
677412410000
Rod (carb)
Loading…

↗
16
677412260000
End, throttle lever (carb)
Loading…

↗
17
677143270000
Screw
Loading…

↗
18
626426580000
Bushing
Loading…

↗
19
6E7143810000
Body, float chamber
Loading…

↗
21
655143980000
Gasket
Loading…

↗
22
677143840100
Gasket, float chamber
Loading…

↗
23
6E7143850000
Float
Loading…

↗
24
367143960000
Pipe, over flow
Loading…

↗
25
647143861000
Pin, float
Loading…

↗
26
677244340200
Gasket, pump 1
Loading…

↗
27
6A0244210100
Valve, check
Loading…

↗
28
677244110200
Diaphragm
Loading…

↗
29
677244120200
Cover, pump
Loading…

↗
30
677244350200
Gasket, body 2
Loading…

↗
31
677244710100
Diaphragm (carb.)
Loading…

↗
32
677244130100
Cover (carb.)
Loading…

↗
33
677244440100
Screw
Loading…

↗
34
677412100000
Accel arm ass'y
Loading…

↗
35
6E7143250000
Screw, pan head
Loading…

↗
36
953800360000
Nut (6g8)
Loading…

↗
