Yamaha Outboard Parts - Carburetor - F20AM (1999) | Flood Marine

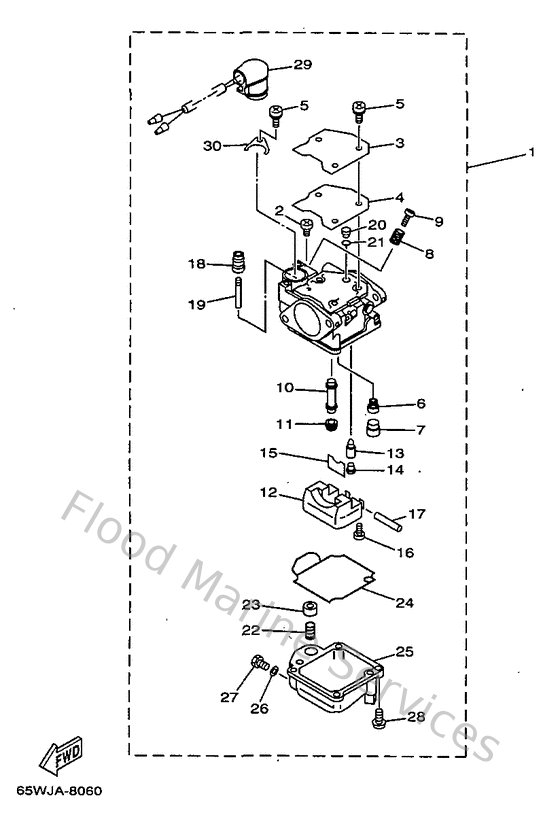

Diagram: Carburetor

Diagram

Parts List

Reference
Description
Price


1
65W149010000
Carburetor assembly 1
Loading…

↗
3
65W145720000
Plate
Loading…

↗
4
65W141260000
Gasket
Loading…

↗
6
65W149480700
Jet (#50)
Loading…

↗
7
679149660000
Rubber cap
Loading…

↗
9
63V145230000
Screw, stop
Loading…

↗
10
65W149472000
Jet, Needle
Loading…

↗
11
65W149432800
Jet, Main (#105)
Loading…

↗
12
63V149850000
Float
Loading…

↗
13
6G1145460000
Valve, needle
Loading…

↗
14
676141860000
Pin, valve
Loading…

↗
15
633141590000
Clip
Loading…

↗
17
6H4145480000
Pin, float arm
Loading…

↗
18
65W143730000
Cover, plunger cap
Loading…

↗
19
65W143790000
Rod, starter
Loading…

↗
20
65W1414F0000
Jet, pilot (# 52)
Loading…

↗
21
65W141470000
O-ring
Loading…

↗
22
65W143350000
Spring, plunger
Loading…

↗
23
65W143710000
Plunger, starter
Loading…

↗
24
65W143840000
Gasket, float chamber
Loading…

↗
25
65W149800000
Body, float chamber
Loading…

↗
26
65W143980000
Washer
Loading…

↗
27
65W149920000
Screw, drain
Loading…

↗
29
65W143800000
Prime starter assembly
Loading…

↗
30
65W143460000
Plate
Loading…

↗
