Yamaha Outboard Parts - Control - 20CMH (1990) | Flood Marine

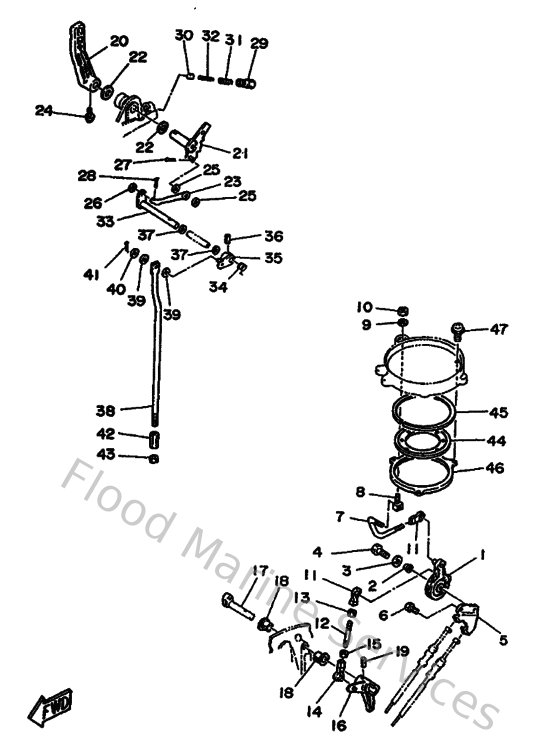

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
664416310094
Lever, magneto control
Loading…

↗
2
9038706M0200
Collar (664)
Loading…

↗
4
973130602500
Bolt
Loading…

↗
5
664144970000
Stay Throttle Wire
Loading…

↗
6
970800601200
Bolt(gh1)
Loading…

↗
7
664416360000
Rod, Magneto Control
Loading…

↗
8
648416350000
Shaft, Link Connecting
Loading…

↗
9
902010555600
Washer plate (664)
Loading…

↗
10
953800560000
Nut, hexagon (663)
Loading…

↗
11
6H1412370000
Joint, link
Loading…

↗
12
901160522000
Bolt, Stud
Loading…

↗
16
6A9421540094
Lever Throttle Control
Loading…

↗
17
656421530094
Shaft, throttle control
Loading…

↗
18
903861000900
Bushing 6484418600
Loading…

↗
19
916904001800
Pin spring(664)
Loading…

↗
21
664441130100
Cam plate, handle
Loading…

↗
23
664441420000
Joint
Loading…

↗
24
9010506M0700
Bolt (689)
Loading…

↗
25
902020600700
Washer plate 626441880000
Loading…

↗
26
929900560000
Washer, plain (646)
Loading…

↗
27
914901601000
Pin, cotter
Loading…

↗
28
914901201000
Pin, cotter (6g8)
Loading…

↗
29
664427150000
Bushing 2
Loading…

↗
30
664441670000
Plunger, shift cam
Loading…

↗
31
9050109M0800
Spring, compresion (664)
Loading…

↗
33
689441210100
Lever, shift rod 1
Loading…

↗
34
9050814M1300
Spring (689)
Loading…

↗
35
689441250000
Lever, shift rod 2
Loading…

↗
36
916904001600
Pin, spring (648)
Loading…

↗
37
902021002400
Washer plate 648441880000
Loading…

↗
38
6G0441430000
Rod, shift
Loading…

↗
41
914902001000
Pin, cotter
Loading…

↗
42
648441460000
Connector, shift rod 2
Loading…

↗
43
901700702100
Nut hexagon 648441280000
Loading…

↗
44
695416120000
Retainer, Magneto Base
Loading…

↗
45
695416130000
Plate, base friction
Loading…

↗
46
695416110094
Retainer, Magneto Base
Loading…

↗
47
979850521000
Screw, With Washer
Loading…

↗
