250BETOXL (2001)
Control

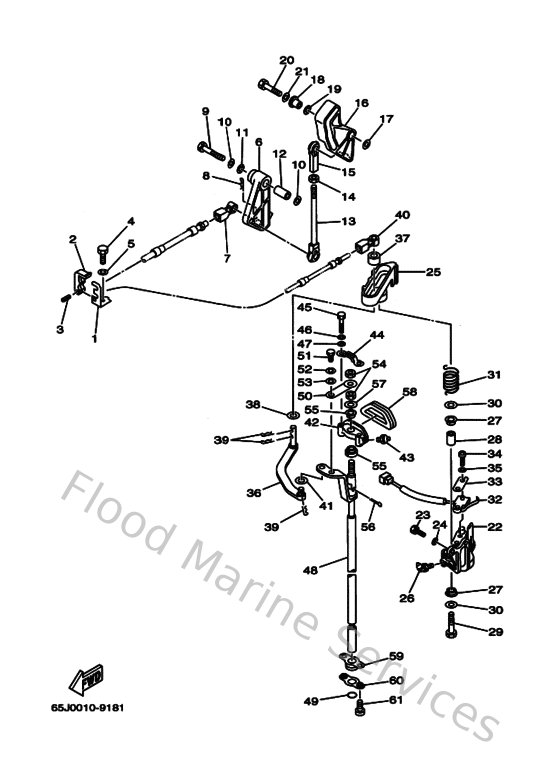

Diagram: Control
Parts List
Reference
Description
Price
1
65L485310000
Bracket Remote Control 1
Loading…
↗
2
663485380000
Clamp, cable 1
Loading…
↗
3
916903001000
Pin, spring (663)
Loading…
↗
4
970950802000
Bolt, hexagon
Loading…
↗
5
929900810000
Ybs67-8 washer, spring
Loading…
↗
6
65L416320000
Lever, Magneto Control
Loading…
↗
7
6E5483440000
Cable end, remote control
Loading…
↗
8
904681800800
Clip 620436610000
Loading…
↗
9
970130804500
Bolt
Loading…
↗
10
929900820000
Ybs66-8 washer, plain
Loading…
↗
11
9020612M0000
Washer, wave (676)
Loading…
↗
12
9038708M1600
Collar
Loading…
↗
13
61A412370000
Joint, link
Loading…
↗
14
953800560000
Nut, hexagon (663)
Loading…
↗
15
682412370000
Joint, link 2
Loading…
↗
16
65L412130000
Cam, Accel
Loading…
↗
17
9020106M3100
Washer (6a0)
Loading…
↗
18
9038706M2900
Coller (6a0)
Loading…
↗
19
9020610M0400
Washer, wave (676)
Loading…
↗
20
970800603000
Bolt(jf7)
Loading…
↗
21
929030660000
Washer, plain (646)
Loading…
↗
22
61A44117011S
Bracket
Loading…
↗
23
970950601600
Bolt, hexagon deep recess
Loading…
↗
24
929950660000
Washer, plain (646)
Loading…
↗
25
61A44176001S
Bracket
Loading…
↗
26
9370006M0100
Nipple, grease(61a)
Loading…
↗
27
903861206900
Bush(666)
Loading…
↗
28
9038708M0900
Collar(61a)
Loading…
↗
29
970950803500
Bolt(70w)
Loading…
↗
30
929070820000
Washer(6tc)
Loading…
↗
31
9050820M3100
Spring, torsion(61a)
Loading…
↗
32
61A8259F0000
Switch assembly
Loading…
↗
33
61A825880100
Plate
Loading…
↗
34
978850401600
Screw, panhead (796)
Loading…
↗
35
929900410000
Ybs67-4 washer, spring
Loading…
↗
36
61A441210000
Lever, shift rod
Loading…
↗
37
6E5441220000
Bushing, shift rod lever
Loading…
↗
38
9020208M2000
Washer, plate (6e5)
Loading…
↗
41
902020600700
Washer plate 626441880000
Loading…
↗
42
61A44118008D
Bracket
Loading…
↗
43
9370006M0300
Nipple, grease(6a1)
Loading…
↗
44
61A441160000
Spring
Loading…
↗
46
929950610000
Washer(6a1)
Loading…
↗
48
61A441202300
Handle gear shift assembly
Loading…
↗
49
932100916500
O-ring
Loading…
↗
50
61A441120000
Stay, handle gear shift
Loading…
↗
51
970800601200
Bolt(gh1)
Loading…
↗
52
929030610000
Washer(6a1)
Loading…
↗
54
953330860000
Nut(6l2)
Loading…
↗
55
9038690M9000
Bush(61a)
Loading…
↗
56
914902001200
Pin, cotter (648)
Loading…
↗
57
9020109M0200
Washer, plate(61a)
Loading…
↗
58
61A153150000
Seal, crankcase
Loading…
↗
59
61A427240000
Grommet
Loading…
↗
60
61A441380000
Washer
Loading…
↗
61
978850600800
Screw, pan head(6a3)
Loading…
↗
