40QMH (1993)
Control

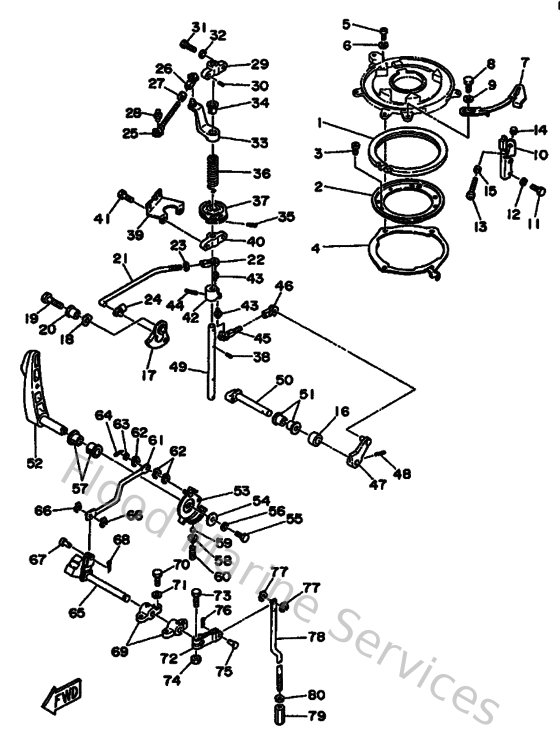

Diagram: Control
Parts List
Reference
Description
Price
1
676416110000
Retainer, magneto base 1
Loading…
↗
2
689416120100
Retainer, magneto base
Loading…
↗
4
676416130000
Plate, base friction
Loading…
↗
5
985800501200
Screw,pan head (646)
Loading…
↗
6
929900510000
Ybs67-5 washer, spring
Loading…
↗
8
970850601000
Bolt
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
679416060000
Stopper Magneto Base Comp. 2
Loading…
↗
11
970950601600
Bolt, hexagon deep recess
Loading…
↗
12
929900610000
Washer(6a1)
Loading…
↗
13
9015706M0000
Screw, pan head(6h4)
Loading…
↗
14
663441940000
Cap
Loading…
↗
15
953800670000
Nut
Loading…
↗
17
6E9412130100
Cam, Accel
Loading…
↗
18
9020610M0400
Washer, wave (676)
Loading…
↗
19
970800603000
Bolt(jf7)
Loading…
↗
20
9038706M2900
Coller (6a0)
Loading…
↗
21
6E9412110000
Link, Accel
Loading…
↗
22
6H1412370000
Joint, link
Loading…
↗
23
953800560000
Nut, hexagon (663)
Loading…
↗
24
6R5412370000
Joint, link
Loading…
↗
26
682412370000
Joint, link 2
Loading…
↗
29
676416610000
Bracket 1
Loading…
↗
30
916904001000
Pin, spring
Loading…
↗
31
970800602000
Bolt(7u8)
Loading…
↗
33
676416310094
Lever, Magneto Control
Loading…
↗
34
903861000900
Bushing 6484418600
Loading…
↗
35
916903001800
926-51502-00 pin, spring (700)
Loading…
↗
36
9050820M0100
Spring, Torsion
Loading…
↗
37
679416380000
Pulley
Loading…
↗
39
676144970000
Stay, Throttle Wire
Loading…
↗
40
676416620000
Bracket 2
Loading…
↗
43
663855180000
Joint, ball
Loading…
↗
45
679412410100
Rod, link
Loading…
↗
47
676421540000
Lever, Throttle Control
Loading…
↗
48
916904002200
Pin,spring (648)
Loading…
↗
50
676421530194
Shaft Throttle Control
Loading…
↗
53
6A0441130000
Cam Plate, Handle
Loading…
↗
54
9020106M0200
Washer,plate (6k8)
Loading…
↗
55
973950601200
Bolt(gh1)
Loading…
↗
57
9038613M3800
Bushing (697)
Loading…
↗
59
935051602400
Ball
Loading…
↗
60
905011227400
Spring 6554411600
Loading…
↗
61
6E9441420000
Joint
Loading…
↗
62
676441880000
Washer
Loading…
↗
63
929900560000
Washer, plain (646)
Loading…
↗
64
914901601000
Pin, cotter
Loading…
↗
65
6E9441190000
Shaft, Change
Loading…
↗
67
917900501400
Pin, clevis (676)
Loading…
↗
70
973130602000
Bolt(7u8)
Loading…
↗
72
676441210100
Lever, Shift Rod
Loading…
↗
74
953130670000
Nut
Loading…
↗
78
676441430000
Rod, shift 1
Loading…
↗
79
648441460000
Connector, shift rod 2
Loading…
↗
80
901700702100
Nut hexagon 648441280000
Loading…
↗
