90AETOL (2001)
Control

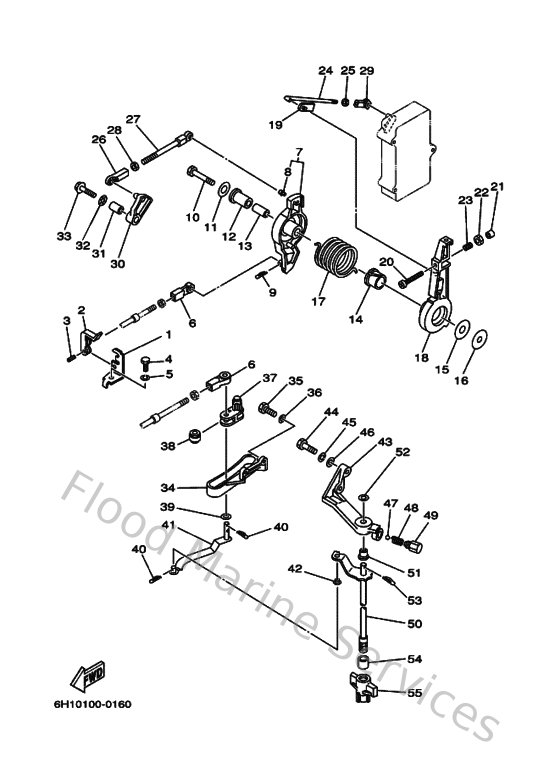

Diagram: Control
Parts List
Reference
Description
Price
1
663485310000
Bracket, remote control
Loading…
↗
2
663485380000
Clamp, cable 1
Loading…
↗
3
916903001200
Pin, spring
Loading…
↗
4
970950801600
Bolt, hexagon deep recess
Loading…
↗
5
929950810000
Ybs67-8 washer, spring
Loading…
↗
6
663483440000
Cable end, remote control
Loading…
↗
7
68841632091S
Lever, magneto control
Loading…
↗
8
662412140100
Joint 1
Loading…
↗
9
904681800800
Clip 620436610000
Loading…
↗
10
970950804500
Bolt, hexagon
Loading…
↗
11
9020108M2300
Washer, plate (6e5)
Loading…
↗
12
903861208900
Bushing(663)
Loading…
↗
13
90387084J800
Collar
Loading…
↗
14
9038622M1300
Bushing (688)
Loading…
↗
15
902021209200
Washer, plate(663)
Loading…
↗
16
9020108M1300
Washer plate (682)
Loading…
↗
17
9050829M0500
Spring, torsion (688)
Loading…
↗
18
68841631011S
Lever, magneto control
Loading…
↗
19
6F5412370000
Joint, link
Loading…
↗
20
9015706M1100
Screw, pan head(697)
Loading…
↗
21
688441940000
Cap
Loading…
↗
22
953030660000
Nut(661)
Loading…
↗
23
9050116M1200
Spring, compression (688)
Loading…
↗
24
6H1416360000
Rod, magneto control
Loading…
↗
25
953800560000
Nut, hexagon (663)
Loading…
↗
26
6H1412370000
Joint, link
Loading…
↗
27
688412110100
Link, accel
Loading…
↗
29
682412370000
Joint, link 2
Loading…
↗
30
6H1412130000
Cam, Accel
Loading…
↗
31
36Y839130100
Collar, lever 1
Loading…
↗
32
9020610M0400
Washer, wave (676)
Loading…
↗
33
9011906M2400
Bolt, with washer
Loading…
↗
34
688441170094
Bracket 1
Loading…
↗
35
970130602000
Bolt(62y)
Loading…
↗
36
929030660000
Washer, plain (646)
Loading…
↗
37
688441240000
Link, shift rod
Loading…
↗
38
688441220000
Bushing, shift rod lever
Loading…
↗
39
9020207M0700
Washer, plate (688)
Loading…
↗
41
688441210200
Lever, shift rod
Loading…
↗
42
9038606M1200
Bushing (688)
Loading…
↗
43
688441180194
Bracket
Loading…
↗
44
970130803000
Bolt
Loading…
↗
45
929030810000
Ybs67-8 washer, spring
Loading…
↗
46
929030860000
Washer, plain (663)
Loading…
↗
47
9350104M0200
Ball (697)
Loading…
↗
48
905011208200
Spring 6484411600
Loading…
↗
49
648427150000
Bushing 2
Loading…
↗
50
688441201200
Handle gear shift assembly
Loading…
↗
51
903860800600
Bushing (688)
Loading…
↗
52
929900820000
Ybs66-8 washer, plain
Loading…
↗
54
696441470000
Boot, shift rod
Loading…
↗
55
697436620000
Guide, reverse rod
Loading…
↗
