F40BM (2001)
Control

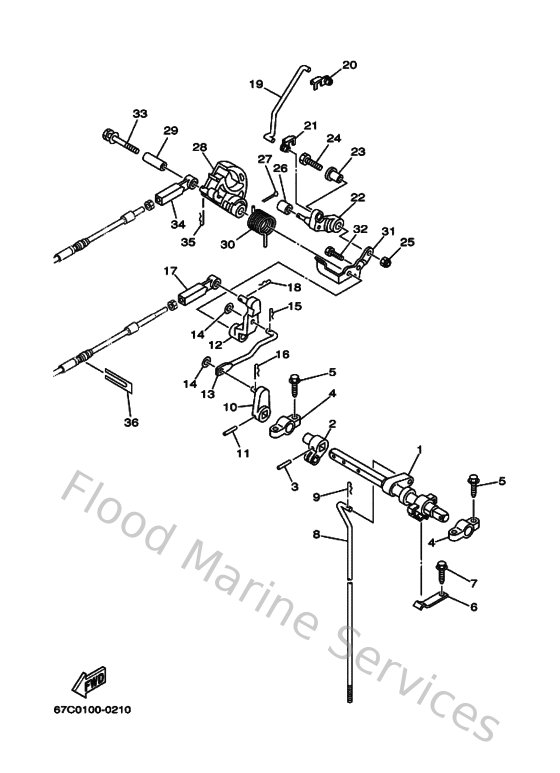

Diagram: Control
Parts List
Reference
Description
Price
1
67C441210000
Lever, Shift Rod
Loading…
↗
2
66M441220000
Bushing, shift rod lever
Loading…
↗
3
9025403M0500
Pin, spring
Loading…
↗
4
6F5416620000
Bracket 2
Loading…
↗
5
9010906M8100
Bolt
Loading…
↗
6
67C441160000
Spring
Loading…
↗
7
9010906M8600
Bolt
Loading…
↗
8
67C441430000
Rod Shift
Loading…
↗
9
904681800800
Clip 620436610000
Loading…
↗
10
65W441420000
Joint
Loading…
↗
12
67C441250000
Lever, shift rod
Loading…
↗
13
67C441920000
Link, shift rod
Loading…
↗
14
9020105M0600
Washer, plate(61u)
Loading…
↗
15
904681000500
Pin, hair 6264123500
Loading…
↗
17
67C483441000
Cable end, remote control
Loading…
↗
19
67C412410000
Rod, link
Loading…
↗
20
6R5412370000
Joint, link
Loading…
↗
21
6F5412370000
Joint, link
Loading…
↗
22
67C412120000
Arm, accel.
Loading…
↗
23
9038706M2900
Coller (6a0)
Loading…
↗
24
9010106M2700
Bolt
Loading…
↗
25
957800630000
Nut, nylon (6g1)
Loading…
↗
26
62Y421710000
Bushing
Loading…
↗
27
914901201000
Pin, cotter (6g8)
Loading…
↗
28
67C412130000
Cam, Accel
Loading…
↗
29
9038706M8800
Collar
Loading…
↗
30
9050820M4400
Spring, torsion
Loading…
↗
31
67C441170000
Bracket
Loading…
↗
32
970950601400
Bolt(gj3)
Loading…
↗
33
9011906M9100
Bolt, with washer
Loading…
↗
34
67C483440000
Cable end, remote control
Loading…
↗
36
62Y485380000
Clamp, cable 1
Loading…
↗
