Yamaha Outboard Parts - Controller 1 - 30DMHO (1998) | Flood Marine

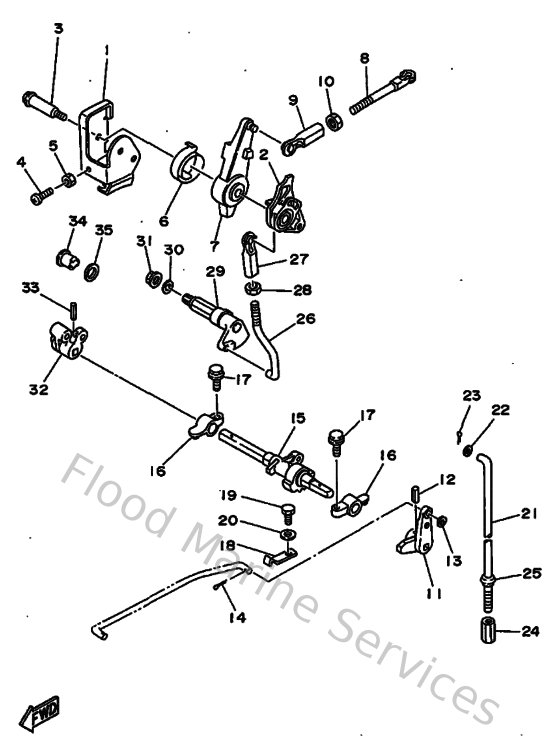

Diagram: Controller 1

Diagram

Parts List

Reference
Description
Price


1
6J8144970000
Stay, throttle wire
Loading…

↗
2
6J8412130000
Cam, accel.
Loading…

↗
3
9010906M2800
Bolt(6j8)
Loading…

↗
4
985800602500
Screw, pan head(6b0)
Loading…

↗
5
953800660000
Nut(661)
Loading…

↗
6
6J8421670000
Spring 1
Loading…

↗
7
6J8416310200
Lever, magneto control
Loading…

↗
8
689421690100
Joint
Loading…

↗
9
682412370000
Joint, link 2
Loading…

↗
10
953800560000
Nut, hexagon (663)
Loading…

↗
11
6J8441230000
Arm, shift rod
Loading…

↗
12
916903031800
Pin, spring (6h3)
Loading…

↗
13
929900620000
Ybs66-6 washer, plain
Loading…

↗
14
914902001500
Pin, cotter (648)
Loading…

↗
15
6J8441210100
Lever, shift rod
Loading…

↗
16
6G1416620194
Bracket
Loading…

↗
17
975950652000
Bolt(7u8)
Loading…

↗
18
6J8441160000
Spring
Loading…

↗
19
970950601200
Bolt(gh1)
Loading…

↗
20
929900660000
Washer, plain (646)
Loading…

↗
21
6J8441430000
Rod, shift
Loading…

↗
22
929900560000
Washer, plain (646)
Loading…

↗
23
914901601000
Pin, cotter
Loading…

↗
24
901700601500
Connector, shift rod
Loading…

↗
25
689433730100
Seal, damper
Loading…

↗
26
6J8421920000
Rod 2
Loading…

↗
29
6J8421540100
Lever, throttle control
Loading…

↗
30
902021002400
Washer plate 648441880000
Loading…

↗
31
957800830000
Nut, nylon (6j8)
Loading…

↗
32
6J8441420000
Joint
Loading…

↗
34
682427260000
Grommet 3
Loading…

↗
35
9020212M1700
Washer, plate (6e0)
Loading…

↗
