2BMH (1987)
Cowling & Fuel

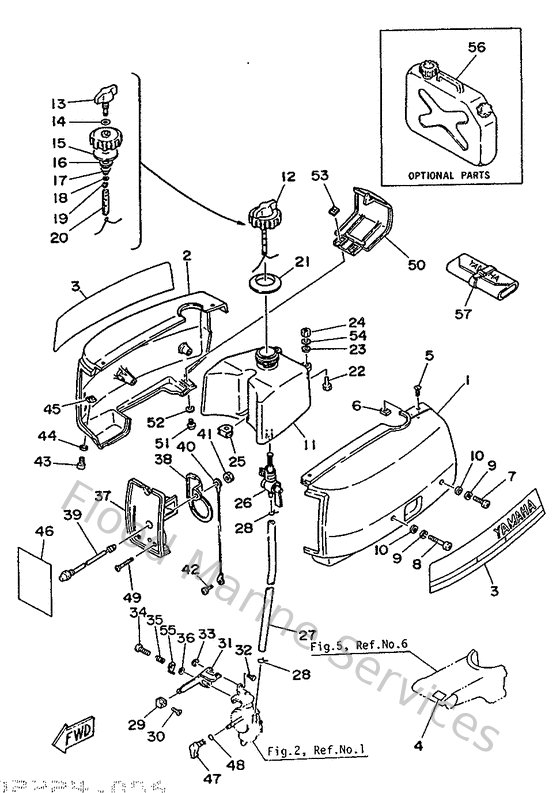

Diagram: Cowling & Fuel
Parts List
Reference
Description
Price
2
6A1427712000
Apron
Loading…
↗
4
6A1427920100
Mark (100:1)
Loading…
↗
5
982800501200
Screw(617)
Loading…
↗
6
9018305M0000
Nut, spring (6a1)
Loading…
↗
7
978900602500
Screw, pan head(6b0)
Loading…
↗
8
978850602500
Screw, pan head(6b0)
Loading…
↗
9
929900610000
Washer(6a1)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
6A1241100100
Fuel tank assembly
Loading…
↗
12
6A1246100000
Cap assembly
Loading…
↗
13
6A1246310000
Screw, air
Loading…
↗
14
904300400500
Gasket 6112463200
Loading…
↗
15
904301411700
Gasket
Loading…
↗
16
646246150100
Gasket, Plate 1
Loading…
↗
17
905011037400
Spring, Compression
Loading…
↗
18
929020420000
Ybs66-4 washer, plain
Loading…
↗
19
905011026000
Spring, safety 6152463500
Loading…
↗
20
646242410000
Indicator
Loading…
↗
21
6A1241980000
Seat, rubber
Loading…
↗
22
970130601800
Bolt, hexagon
Loading…
↗
23
9020106M3000
Washer, plate (6a1)
Loading…
↗
24
953030660000
Nut(661)
Loading…
↗
25
6A1241810000
Damper, locating
Loading…
↗
26
6A1245000200
Fuel cock assembly 1
Loading…
↗
27
6A1243110000
Pipe 1
Loading…
↗
28
904670800400
Clip, pipe 6162435600
Loading…
↗
29
6A1416370000
Knob, magneto control
Loading…
↗
31
6A1412120000
Arm, Accel
Loading…
↗
32
6A1143650000
Pin, clevis
Loading…
↗
33
934300400300
Circlip (eu0)
Loading…
↗
34
978030502500
Screw, panhead (a93)
Loading…
↗
35
9050112M1600
Spring (6a1)
Loading…
↗
36
929030520000
Ybs66-5 washer, plain
Loading…
↗
37
6A1144420000
Spacer 1
Loading…
↗
39
6A1825500000
Stop switch assembly
Loading…
↗
40
6A1825410000
Wire, Lead
Loading…
↗
41
953900870000
Nut(661)
Loading…
↗
42
985800500800
Screw, pan head (7g3)
Loading…
↗
43
978900501000
Screw, pan head(62x)
Loading…
↗
44
929900560000
Washer, plain (646)
Loading…
↗
45
9017305M0000
Nut, square (6a1)
Loading…
↗
46
6A1426770100
Graphic Front
Loading…
↗
47
6A1412710000
Knob, choke
Loading…
↗
48
9321008M2900
O-ring (6a1)
Loading…
↗
49
986800403500
Screw.oval Head
Loading…
↗
54
929030610000
Washer(6a1)
Loading…
↗
55
6A1412230000
Washer, lock 1
Loading…
↗
57
6A1281000200
Tool kit
Loading…
↗
