Yamaha Outboard Parts - Cowling & Fuel - 4ACMH (1987) | Flood Marine

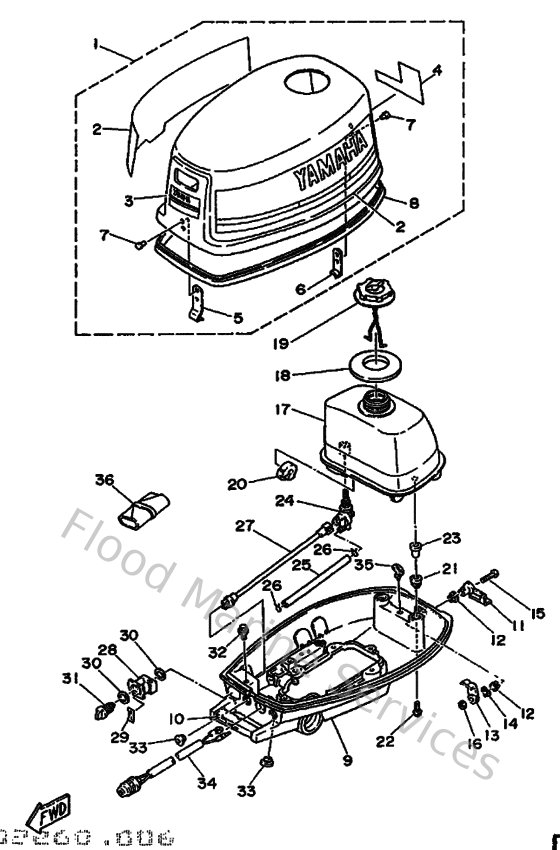

Diagram: Cowling & Fuel

Diagram

Parts List

Reference
Description
Price


3
6E0426770100
Graphic Front
Loading…

↗
5
6E0426510000
Hook
Loading…

↗
6
6E0426470100
Holder, clamp band
Loading…

↗
7
9026604M0000
Rivet 2 (662)
Loading…

↗
8
6E0426150000
Seal
Loading…

↗
10
6A1427920100
Mark (100:1)
Loading…

↗
11
6E04281500EJ
Lever Clamp 1
Loading…

↗
12
903861206900
Bush(666)
Loading…

↗
13
6L2428160000
Lever, clamp
Loading…

↗
14
902061205200
Washer, wave (666)
Loading…

↗
15
978900603000
Screw, pan head(6e0)
Loading…

↗
16
953800670000
Nut
Loading…

↗
17
6E02411000EJ
Fuel Tank Comp
Loading…

↗
18
6E0246410000
Gasket, cap
Loading…

↗
19
6E0246100200
Cap assembly
Loading…

↗
20
6E0241810000
Damper, locating 1
Loading…

↗
21
6E0241820000
Damper, locating 2
Loading…

↗
22
958950602500
Bolt, flange deep recess
Loading…

↗
23
6E0425420000
Pipe 1
Loading…

↗
24
6E0245000100
Fuel cock assembly 1
Loading…

↗
25
9044509M3700
Hose (l1500)
Loading…

↗
26
904670800400
Clip, pipe 6162435600
Loading…

↗
27
6E0245720000
Shaft, fuel change
Loading…

↗
28
6E0245710000
Bushing
Loading…

↗
30
9020212M1700
Washer, plate (6e0)
Loading…

↗
31
6E0245750100
Lever, fuel change
Loading…

↗
32
9010506M1500
Bolt (6e0)
Loading…

↗
34
6A0825500100
Stop switch assembly
Loading…

↗
35
606425910000
Holder, shear pin
Loading…

↗
36
6E0281000100
Tool kit
Loading…

↗
