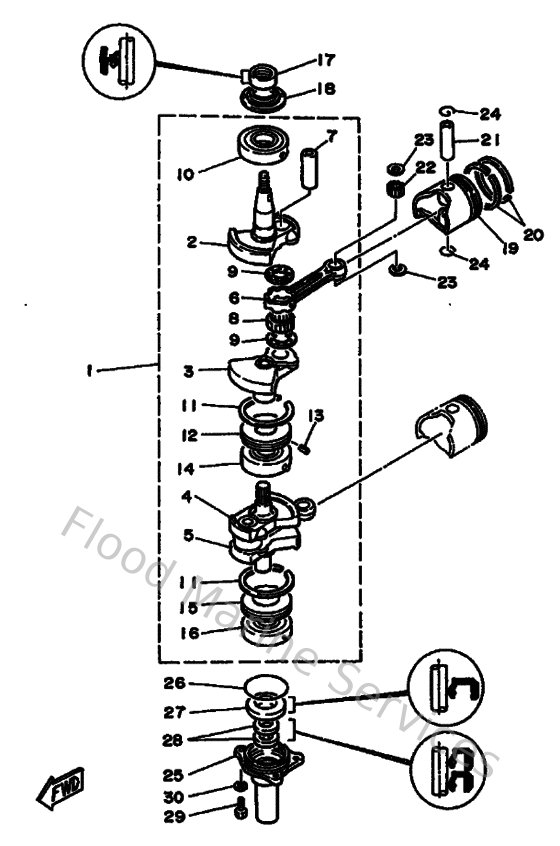

Diagram: Crankshaft & Piston

Diagram

Parts List

Reference
Description
Price


1
682114000200
Crankshaft Assembly
Loading…

↗
2
682114120100
Crank 1
Loading…

↗
3
6K4114320000
Crank 3
Loading…

↗
4
6K4114220000
Crank 2
Loading…

↗
5
682114420100
Crank 4
Loading…

↗
6
650116510400
Rod, connecting
Loading…

↗
7
682116810000
Pin crank
Loading…

↗
8
93310620V500
Bearing, big end (682)
Loading…

↗
9
902092015900
Washer, crank pin (1h9)
Loading…

↗
10
93306205U200
Bearing(6e8)
Loading…

↗
11
9344057M0100
Circrip (682)
Loading…

↗
12
682115150200
Seal, labyrinth 1
Loading…

↗
13
916902000800
Pin, spring
Loading…

↗
14
93304205U000
Brg,r-b 4205 57mm 238g (682)
Loading…

↗
15
682115250000
Seal labyrinth 2
Loading…

↗
16
93306304U000
Brg,r-b 6304 57mm (682)
Loading…

↗
17
9311023M0000
Oil seal (682)
Loading…

↗
18
682114450000
Spacer
Loading…

↗
19
6E7116310097
Piston (std)
Loading…

↗
20
682116100100
Piston ring set (std)
Loading…

↗
21
634116330000
Pin, piston
Loading…

↗
22
936021410400
Pin, dowel
Loading…

↗
23
902011437700
Washer, plate
Loading…

↗
24
934501502300
Circlip 131116340000
Loading…

↗
25
68215396035B
Housing, oil seal
Loading…

↗
26
932105367900
O-ring(50m)
Loading…

↗
27
9310120M3400
Oil seal(6j1)
Loading…

↗
28
9310113M1100
Oil seal (682)
