25BMH (1994)
Crankshaft & Piston

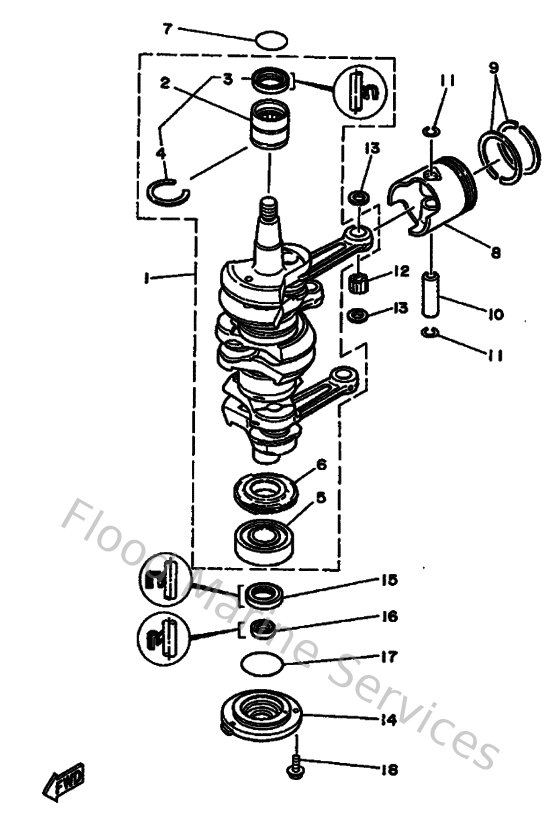

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6H3114001100
Crankshaft assembly
Loading…
↗
2
93311636U600
Bearing, needle (6h3)
Loading…
↗
3
9310236M2400
Oil seal(52w)
Loading…
↗
4
9344049M0400
Circlip (6h3)
Loading…
↗
5
93306306V100
Bearing(6h2)
Loading…
↗
7
9321046M1600
O-ring (688)
Loading…
↗
8
6H3116310196
Piston (std)
Loading…
↗
9
6K5116012200
Piston ring set (2nd o/s)
Loading…
↗
10
6H3116330000
Pin, piston
Loading…
↗
11
688116341000
Clip, piston pin
Loading…
↗
12
9360318M0900
Pin, dowel b (6h3)
Loading…
↗
13
902012041700
Washer, plate(663)
Loading…
↗
14
6H3153590094
Housing, oil seal
Loading…
↗
15
9310230M2300
Oil seal (6h3)
Loading…
↗
16
9310618M0100
Oil seal (6h3)
Loading…
↗
17
9321065M5000
O-ring
Loading…
↗
18
975950652000
Bolt(7u8)
Loading…
↗
