40VMO (1995)
Crankshaft & Piston

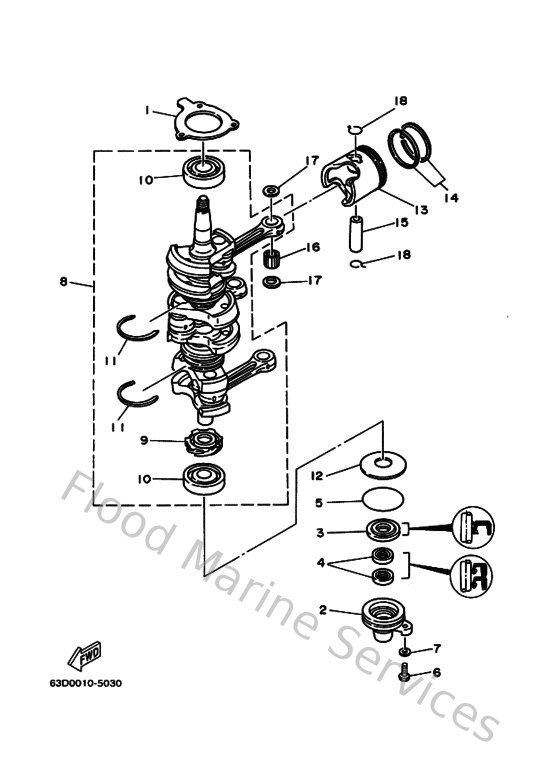

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6H415369A100
Gasket, oil seal housing
Loading…
↗
3
9310225M2800
Oil seal(6h4)
Loading…
↗
4
9310116M3600
Oil seal(6a8)
Loading…
↗
5
9321057M0900
O-ring (683)
Loading…
↗
6
970800602000
Bolt(7u8)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
6H4114001400
Crankshaft assembly
Loading…
↗
9
6H4115360000
Gear, drive
Loading…
↗
10
93306305U800
Bearing(6h4)
Loading…
↗
11
934406205700
Cir clip (656)
Loading…
↗
12
902015030600
Washer plate 648115870000
Loading…
↗
13
6H4116310195
Piston (std)
Loading…
↗
14
63D116050000
Piston ring set (0.50mm o/s)
Loading…
↗
15
648116330000
Pin,piston
Loading…
↗
16
9360220M0200
Pin, dowel b (664)
Loading…
↗
17
6H4116410000
Washer, piston pin
Loading…
↗
18
6H4116340100
Clip, piston pin
Loading…
↗
