40XMH (2001)
Crankshaft & Piston

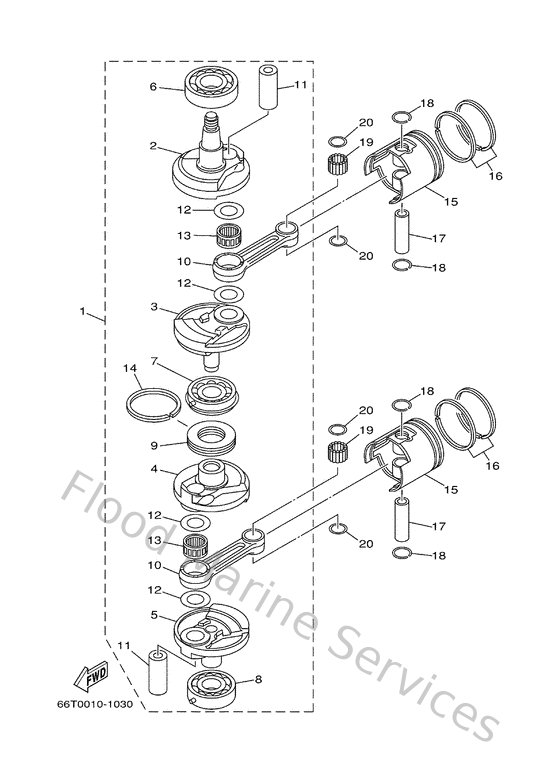

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
66T114000100
Crankshaft assembly
Loading…
↗
2
66T114120000
Crank 1
Loading…
↗
3
66T114220000
Crank 2
Loading…
↗
4
66T114320000
Crank 3
Loading…
↗
5
66T114420000
Crank 4
Loading…
↗
6
93306307U000
Brg,r-b 6307 80mm 449g (6f5)
Loading…
↗
7
93332000UE00
Bearing
Loading…
↗
8
93306306V500
Bearing
Loading…
↗
9
6F5115150000
Seal, labyrinth 1
Loading…
↗
10
6F5116510000
Rod, connecting
Loading…
↗
11
66T116810000
Pin, crank 1
Loading…
↗
12
9020927M0700
Washer
Loading…
↗
13
93310727U000
Bearing
Loading…
↗
14
9344068M0300
Circlip (6f5)
Loading…
↗
15
66T116310093
Piston (std)
Loading…
↗
16
66T116040000
Piston ring set (0.25mm o/s)
Loading…
↗
17
6F5116330000
Pin, piston
Loading…
↗
18
663116340000
Clip, piston pin
Loading…
↗
19
936032111100
Pin, dowel(663)
Loading…
↗
20
902012041700
Washer, plate(663)
Loading…
↗
