70BETO (1985)
Crankshaft & Piston

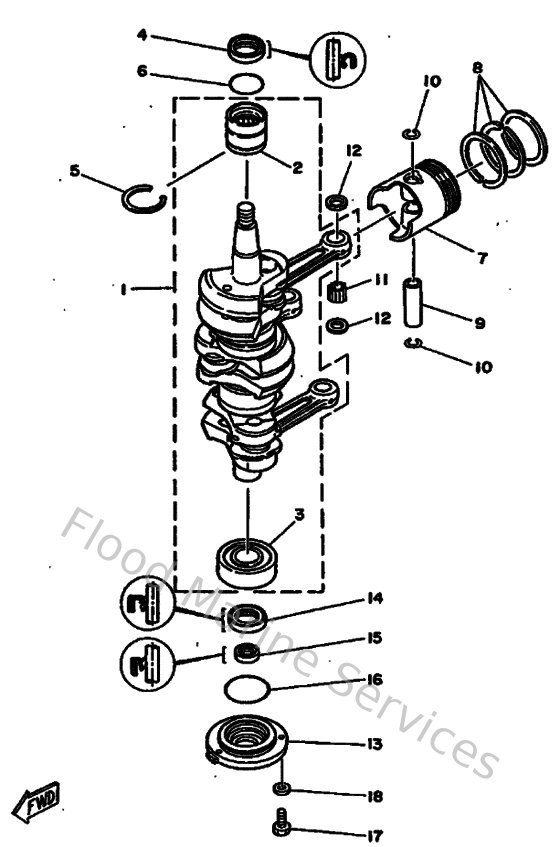

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6H3114000000
Crankshaft assembly
Loading…
↗
2
93311636U600
Bearing, needle (6h3)
Loading…
↗
3
93306306U600
Bearing(6h2)
Loading…
↗
4
931023635100
Oil seal(52w)
Loading…
↗
5
9344049M0400
Circlip (6h3)
Loading…
↗
6
9321046M1600
O-ring (688)
Loading…
↗
7
6B0116360000
Piston (0.50Mm O/s)
Loading…
↗
8
6H3116100000
Piston ring set (std)
Loading…
↗
9
6H3116330000
Pin, piston
Loading…
↗
10
688116341000
Clip, piston pin
Loading…
↗
11
9360318M0900
Pin, dowel b (6h3)
Loading…
↗
12
902012041700
Washer, plate(663)
Loading…
↗
13
6H3153590094
Housing, oil seal
Loading…
↗
14
9310230M2300
Oil seal (6h3)
Loading…
↗
15
9310618M0100
Oil seal (6h3)
Loading…
↗
16
9321065M5000
O-ring
Loading…
↗
17
973950602000
Bolt(7u8)
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
