F20AM (1999)
Crankshaft & Piston

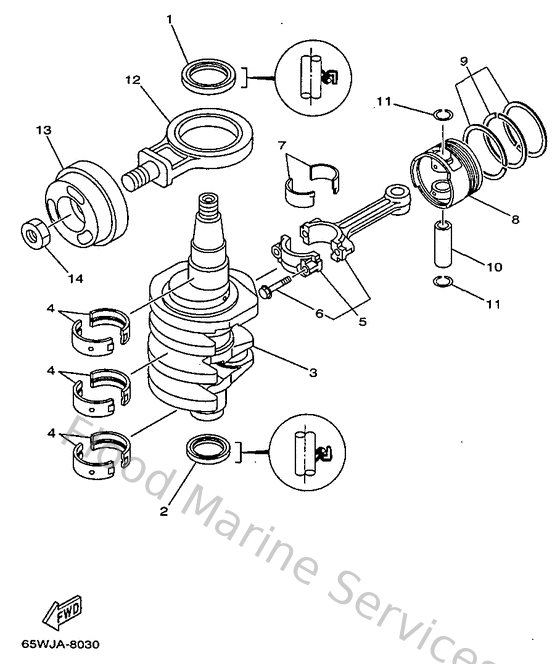

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
3
65W114110100
Crankshaft
Loading…
↗
4
62Y114162000
Plane bearing, crankshaft 1
Loading…
↗
5
62Y116500000
Connecting rod assembly
Loading…
↗
6
62Y116540000
Bolt, connecting rod
Loading…
↗
7
62Y116562000
Plane bearing, connecting rod
Loading…
↗
8
65W116310096
Piston (std)
Loading…
↗
9
65W116050000
Piston Ring Set (0.50Mm O/s)
Loading…
↗
10
62Y116330000
Pin, piston
Loading…
↗
12
65W116650000
Con-rod assembly, balance
Loading…
↗
13
65W116421100
Piston, Balance
Loading…
↗
