F6AMH (2001)
Crankshaft & Piston

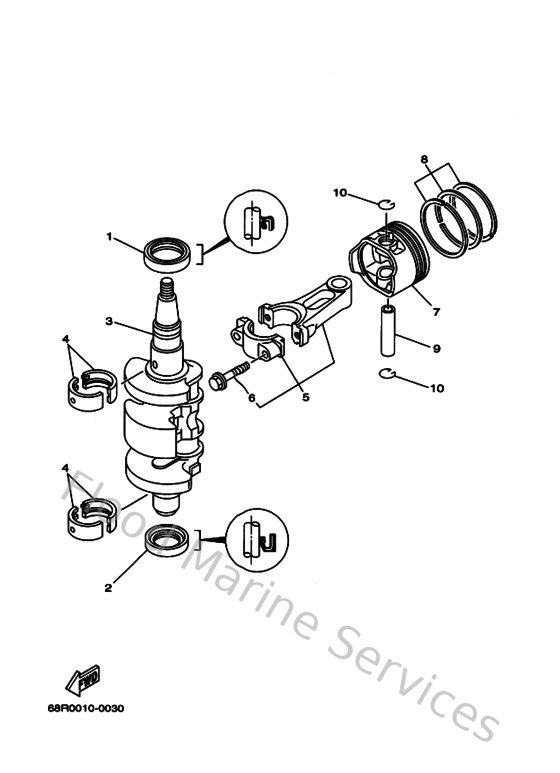

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
9310230M2200
Oil seal (6g8)
Loading…
↗
2
9310125M6900
Oil seal
Loading…
↗
3
68T114110000
Crankshaft
Loading…
↗
4
68T114162100
Plane bearing, crankshaft 1
Loading…
↗
5
68T116500000
Connecting rod kit
Loading…
↗
6
67D116540000
Bolt, connecting rod
Loading…
↗
7
60RE16360000
Piston (0.50mm o/s)
Loading…
↗
8
68T116050100
Piston ring set (0.50mm o/s)
Loading…
↗
9
68T116330000
Pin, piston
Loading…
↗
10
934501502300
Circlip 131116340000
Loading…
↗
