FT9.9DMHSL (2001)
Crankshaft & Piston

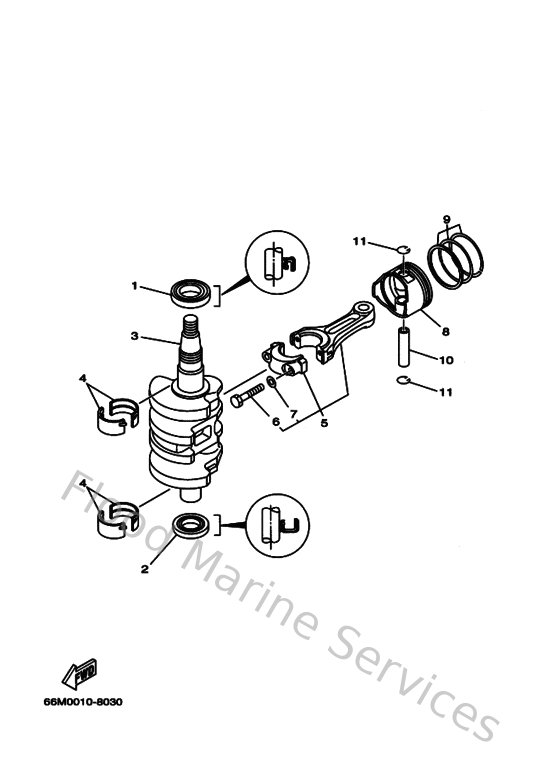

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
9310235M5100
Oil seal
Loading…
↗
2
9310225M5200
Oil seal
Loading…
↗
3
66M114110000
Crankshaft
Loading…
↗
4
66M114162000
Plane bearing, crankshaft 1
Loading…
↗
5
66M116500000
Connecting rod kit
Loading…
↗
6
66M116540000
Bolt, connecting rod
Loading…
↗
7
9020107M0100
Washer, plate
Loading…
↗
8
66M116360000
Piston (0.50Mm O/S)
Loading…
↗
9
66M116030000
Piston ring set (std)
Loading…
↗
10
634116330000
Pin, piston
Loading…
↗
11
934501502300
Circlip 131116340000
Loading…
↗
