200AETOL (1989)
Cylinder & Crankcase

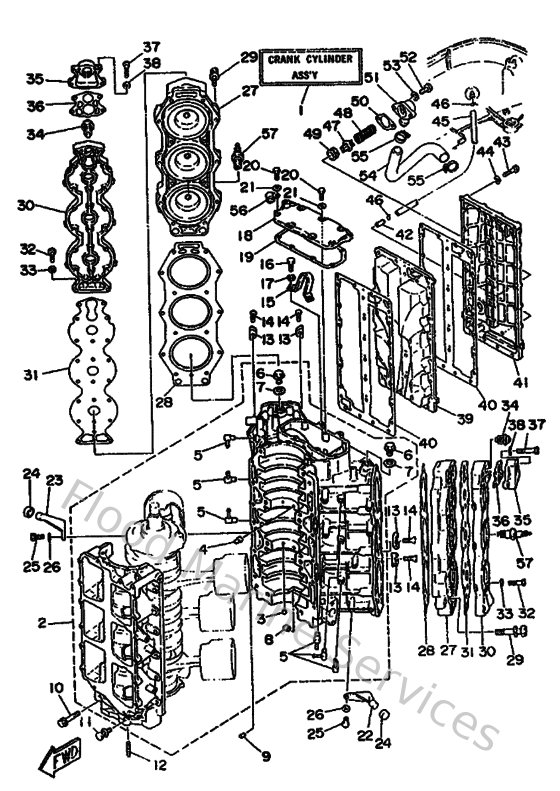

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
2
6G4151000494
Crankcase assembly
Loading…
↗
3
624113790000
Valve, check
Loading…
↗
4
663115180100
Lock, bearing
Loading…
↗
5
646113700000
Check valve assembly
Loading…
↗
6
9034014M0000
Plug, straight screw(62y)
Loading…
↗
7
904301411500
Gasket (663)
Loading…
↗
9
936081206300
Pin, dowel (626)
Loading…
↗
10
9010510M2000
Bolt (6e5)
Loading…
↗
12
9011608M1400
Bolt, stud (6e5)
Loading…
↗
13
6E5113250000
Anode
Loading…
↗
14
987800401600
Screw, flat head(ga5)
Loading…
↗
15
6E5111190000
Hanger, Engine
Loading…
↗
16
973130802000
Bolt(6td)
Loading…
↗
17
929900810000
Ybs67-8 washer, spring
Loading…
↗
18
6E511371009M
Cover
Loading…
↗
20
973130602000
Bolt(7u8)
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
6E542761001S
Stopper
Loading…
↗
23
6E5427620094
Stopper
Loading…
↗
24
663445330000
Damper, upper mount
Loading…
↗
25
970800602000
Bolt(7u8)
Loading…
↗
27
6G4111110294
Head, cylinder 1
Loading…
↗
28
6G511181A300
Gasket, cylinder head 1
Loading…
↗
29
9011908M2100
Bolt, with washer(63v)
Loading…
↗
30
6G511191009M
Cover, cylinder head 1
Loading…
↗
31
6G511193A200
Gasket, head cover 1
Loading…
↗
32
973130603000
Bolt
Loading…
↗
34
6E5124113000
Thermostat
Loading…
↗
35
6G512413009M
Cover, thermostat
Loading…
↗
36
688124140000
Gasket, cover
Loading…
↗
37
970130604500
Bolt, hexagon
Loading…
↗
39
6G541111009M
Inner cover, exhaust
Loading…
↗
40
6G5411120000
Gasket, exhaust inner cover
Loading…
↗
41
6R341113001S
Outer cover, exhaust
Loading…
↗
42
650243780000
Pipe, joint 2
Loading…
↗
43
970140603500
Bolt(3rv)
Loading…
↗
45
6E5243120000
Pipe 2
Loading…
↗
46
904670800400
Clip, pipe 6162435600
Loading…
↗
47
60H124160000
Valve, pressure control
Loading…
↗
48
9050116M1100
Spring, compression (688)
Loading…
↗
49
9048020M0500
Grommet (688)
Loading…
↗
51
6G511372009M
Cover, bypass 2
Loading…
↗
54
6G5125760000
Hose 1
Loading…
↗
55
9046513M3000
Clamp
Loading…
↗
56
904650802800
Clamp (1e6)
Loading…
↗
57
947020024700
Plug, spark (br8hs-10)
Loading…
↗
