225GETOL (2000)
Cylinder & Crankcase

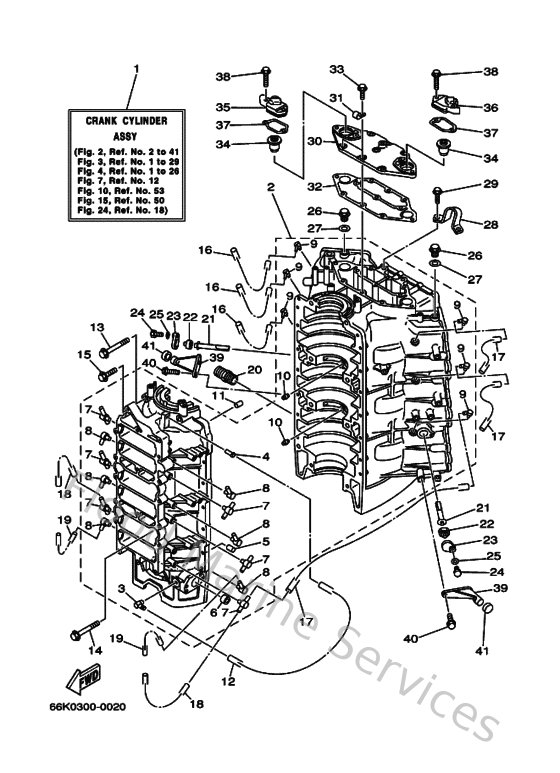

Diagram: Cylinder & Crankcase
Parts List
Reference
Description
Price
1
66KW0090101S
Crank cylinder assembly
Loading…
↗
2
65L15100001S
Crankcase Assembly
Loading…
↗
3
6E5113720000
Nipple, hose
Loading…
↗
4
624144850000
Pipe, joint
Loading…
↗
5
9038406M0700
Bush, bimetal formed(6r3)
Loading…
↗
6
9038316M0100
Bush, formed(61a)
Loading…
↗
7
6F6113720000
Nipple, hose
Loading…
↗
8
650113720000
Nipple, hose
Loading…
↗
10
663115180100
Lock, bearing
Loading…
↗
11
936081206300
Pin, dowel (626)
Loading…
↗
12
9044507M1100
Hose (l770)
Loading…
↗
13
9010510M6200
Bolt, washer based(61a)
Loading…
↗
14
9010510M7500
Bolt, washer based(65j)
Loading…
↗
15
9011906M1300
Bolt, with washer (682)
Loading…
↗
16
9044507M9000
Hose (l390)
Loading…
↗
17
9044507M4000
Hose (l390)
Loading…
↗
18
9044507MA600
Hose (l200)
Loading…
↗
19
9044507MA300
Hose (l200)
Loading…
↗
20
6G5125810000
Joint, hose
Loading…
↗
21
61A113250000
Anode
Loading…
↗
22
6H3113280000
Grommet, anode
Loading…
↗
23
6H311327001S
Cover, anode
Loading…
↗
24
970140601600
Bolt, hexagon deep recess
Loading…
↗
25
929030660000
Washer, plain (646)
Loading…
↗
26
9034014M0000
Plug, straight screw(62y)
Loading…
↗
27
904301411500
Gasket (663)
Loading…
↗
28
6E5111190100
Hanger, engine
Loading…
↗
29
9011908MA300
Bolt, with washer
Loading…
↗
30
61A11371001S
Cover
Loading…
↗
31
9046506M8600
Clamp
Loading…
↗
32
61A11381A000
Gasket 1
Loading…
↗
33
9011906MA200
Bolt, with washer
Loading…
↗
34
6E5124112000
Thermostat
Loading…
↗
35
61A12413001S
Cover, thermostat
Loading…
↗
36
61A12413101S
Cover, thermostat
Loading…
↗
37
61A12414A000
Gasket, cover
Loading…
↗
38
9011906MA500
Bolt, with washer
Loading…
↗
39
6E542761001S
Stopper
Loading…
↗
41
663445330000
Damper, upper mount
Loading…
↗
