250AETOXLX (2000)
Cylinder. Crankcase

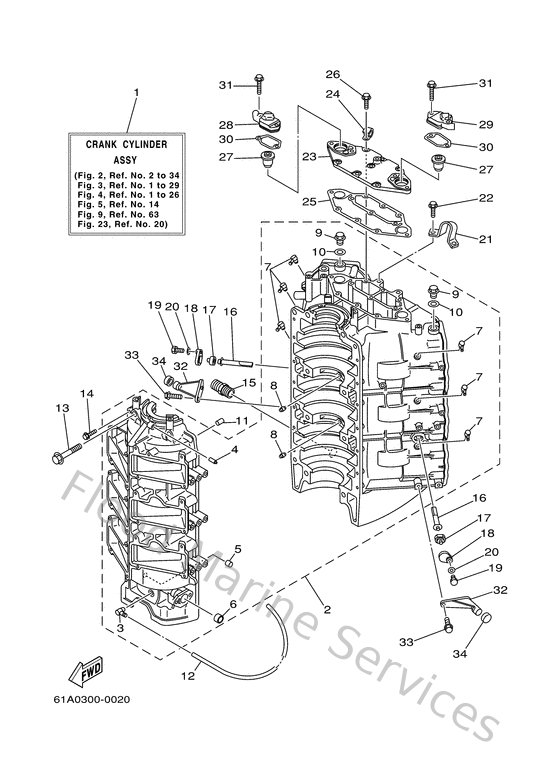

Diagram: Cylinder. Crankcase
Parts List
Reference
Description
Price
1
61AW0090161S
Crank Cylinder assembly
Loading…
↗
2
61A15100041S
Crankcase assembly
Loading…
↗
3
6E5113720100
Nipple, hose
Loading…
↗
4
624144850000
Pipe, joint
Loading…
↗
5
9038406M0700
Bush, bimetal formed(6r3)
Loading…
↗
6
9038316M0100
Bush, formed(61a)
Loading…
↗
7
6E5113720000
Nipple, hose
Loading…
↗
8
663115180100
Lock, bearing
Loading…
↗
9
9034014M0000
Plug, straight screw(62y)
Loading…
↗
10
904301411500
Gasket (663)
Loading…
↗
11
936081206300
Pin, dowel (626)
Loading…
↗
12
904450700600
Hose (l770)
Loading…
↗
13
9010510M6200
Bolt, washer based(61a)
Loading…
↗
14
9011906M1300
Bolt, with washer (682)
Loading…
↗
15
6G5125810000
Joint, hose
Loading…
↗
16
61A113250000
Anode
Loading…
↗
17
6H3113280000
Grommet, anode
Loading…
↗
18
6H311327001S
Cover, anode
Loading…
↗
19
970130601600
Bolt, hexagon deep recess
Loading…
↗
20
929900660000
Washer, plain (646)
Loading…
↗
21
6E5111190100
Hanger, engine
Loading…
↗
22
9011908MA300
Bolt, with washer
Loading…
↗
23
61A11371001S
Cover
Loading…
↗
24
9046506M8600
Clamp
Loading…
↗
25
61A11381A000
Gasket 1
Loading…
↗
26
9011906MA200
Bolt, with washer
Loading…
↗
27
6E5124112000
Thermostat
Loading…
↗
28
61A12413001S
Cover, thermostat
Loading…
↗
29
61A12413101S
Cover, thermostat
Loading…
↗
30
61A12414A000
Gasket, cover
Loading…
↗
31
9011906MA500
Bolt, with washer
Loading…
↗
32
6E542761001S
Stopper
Loading…
↗
34
663445330000
Damper, upper mount
Loading…
↗
