25QEO (1996)
Cylinder. Crankcase

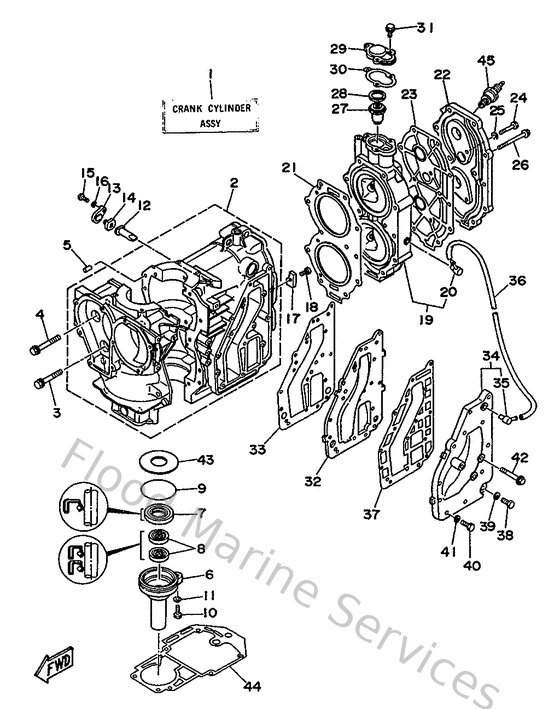

Diagram: Cylinder. Crankcase
Parts List
Reference
Description
Price
2
61N151000094
Crankcase assembly
Loading…
↗
3
9011908M1800
Bolt, with washer
Loading…
↗
4
9011908M2000
Bolt, with washer
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
6891539601CA
Housing, oil seal
Loading…
↗
7
9310225M2800
Oil seal(6h4)
Loading…
↗
8
9310116M3600
Oil seal(6a8)
Loading…
↗
9
9321057M0900
O-ring (683)
Loading…
↗
10
973950602200
Bolt(61k)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
6J8113250000
Anode
Loading…
↗
13
6H3113270094
Cover, anode
Loading…
↗
14
6H3113280000
Grommet, anode
Loading…
↗
15
970950601600
Bolt, hexagon deep recess
Loading…
↗
17
689113250000
Anode
Loading…
↗
18
987800602000
Screw flat head
Loading…
↗
19
61T11111011S
Head, cylinder 1
Loading…
↗
20
676113720000
Nipple, hose
Loading…
↗
22
61N11191019M
Cover, cylinder head 1
Loading…
↗
23
61T11193A000
Gasket, head cover 1
Loading…
↗
24
973130602200
Bolt, hexagon
Loading…
↗
26
9011908M2900
Bolt, with washer
Loading…
↗
27
6E5124110100
Thermostat
Loading…
↗
28
902012156700
Washer, plate (650)
Loading…
↗
29
65512413019M
Cover, thermostat
Loading…
↗
30
65512414A100
Gasket, cover
Loading…
↗
31
970800602000
Bolt(7u8)
Loading…
↗
32
6K841121009M
Inner cover,exhaust
Loading…
↗
33
6K841122A100
Gasket, exhaust inner cover
Loading…
↗
34
61N41123009M
Outer Cover, Exhaust
Loading…
↗
36
9044510M4300
Hose (l400)
Loading…
↗
38
970950602500
Bolt
Loading…
↗
40
970950603000
Bolt(jf7)
Loading…
↗
42
975950655000
Bolt, hexagon w/w deep recess
Loading…
↗
43
902015030600
Washer plate 648115870000
Loading…
↗
44
68945113A100
Gasket, upper casing
Loading…
↗
45
947020024700
Plug, spark (br8hs-10)
Loading…
↗
