F20AM (2000)
Cylinder. Crankcase 2

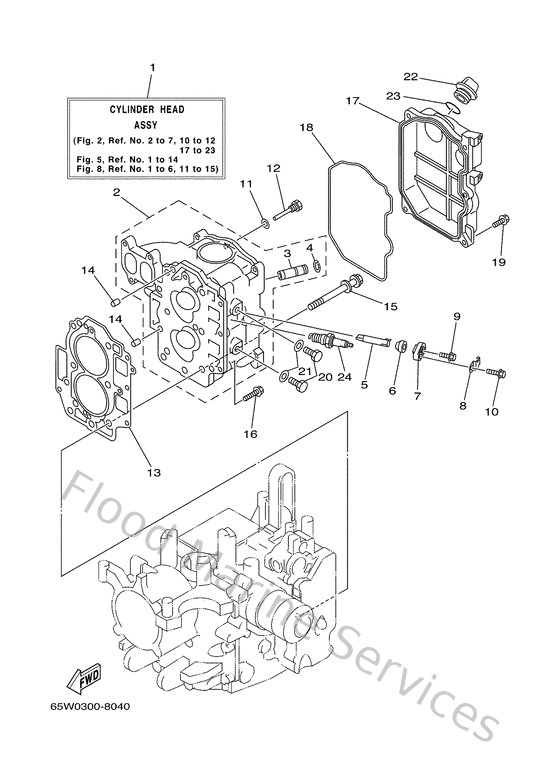

Diagram: Cylinder. Crankcase 2
Parts List
Reference
Description
Price
1
65WW009A124D
Cylinder Head Complete
Loading…
↗
2
65W111110294
Head, Cylinder 1
Loading…
↗
3
62Y111331000
Guide, valve 1
Loading…
↗
4
9345009M0100
Circlip (6g8)
Loading…
↗
5
62Y113250000
Anode
Loading…
↗
6
66M113280000
Grommet, anode
Loading…
↗
7
66M113270094
Cover, anode
Loading…
↗
8
66M125350000
Plate
Loading…
↗
9
975950551200
Bolt, hexagon
Loading…
↗
10
975130652000
Bolt, with washer(61b)
Loading…
↗
11
904300601400
Gasket 256113960000
Loading…
↗
12
9010906M6500
Bolt(62y)
Loading…
↗
13
65W111813000
Gasket, cylinder head 1
Loading…
↗
14
995300801200
Pin, dowel(6g8)
Loading…
↗
15
9011909M0000
Bolt, with washer(62y)
Loading…
↗
16
975130652500
Bolt, with washer(61b)
Loading…
↗
17
65W111910094
Cover Cylinder Head 1
Loading…
↗
18
65W113560000
Seal, cylinder 2
Loading…
↗
19
970240602000
Bolt(3dm)
Loading…
↗
20
970950801400
Bolt, hexagon deep recess
Loading…
↗
21
904300814300
Gasket (256-11198-00)
Loading…
↗
22
6G8153630000
Plug, oil
Loading…
↗
23
9321024M7900
O-ring
Loading…
↗
24
947010037500
Plug, spark (dpr6ea-9)(62y)
Loading…
↗
