FT9.9AMH (1990)
Electric Motor

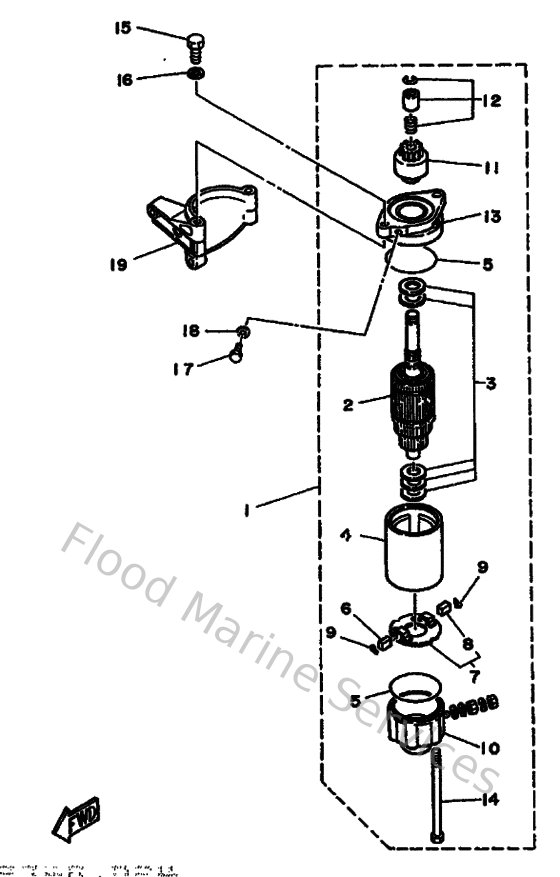

Diagram: Electric Motor
Parts List
Reference
Description
Price
1
6G8818001000
Starting Motor assembly
Loading…
↗
2
689818501100
Armature assembly
Loading…
↗
3
689818091100
Washer kit
Loading…
↗
4
689818101100
Stator ass'y
Loading…
↗
5
689818471100
O-ring
Loading…
↗
6
689818111100
Brush 1
Loading…
↗
7
689818401100
Brush holder assembly
Loading…
↗
8
689818121100
Brush 2
Loading…
↗
9
689818131000
Spring, brush
Loading…
↗
10
689818201100
Rear cover ass'y
Loading…
↗
11
689818071200
Pinion assembly
Loading…
↗
12
689818571100
Pinion stopper set
Loading…
↗
13
6F5818301100
Front cover assembly
Loading…
↗
14
689818261000
Bolt
Loading…
↗
15
970130802500
Bolt (682)
Loading…
↗
16
929900860000
Washer, plain (663)
Loading…
↗
17
970800801600
Bolt
Loading…
↗
19
6G8818224094
Bracket Starting Motor
Loading…
↗
