Yamaha Outboard Parts - Electrical - 25DMH (1990) | Flood Marine

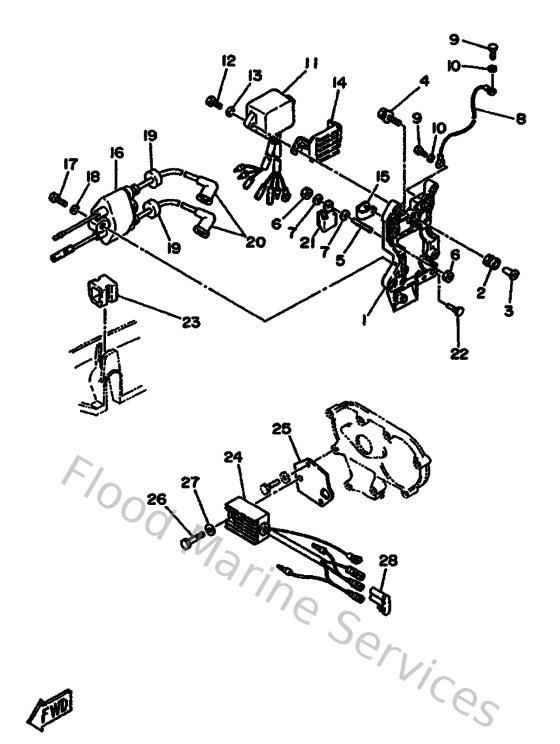

Diagram: Electrical

Diagram

Parts List

Reference
Description
Price


1
695855420094
Bracket
Loading…

↗
2
6A0823170000
Damper, ignition coil
Loading…

↗
3
624425420000
Collar
Loading…

↗
4
9011906M8800
Bolt, with washer
Loading…

↗
5
9011606M0700
Bolt, stud (688)
Loading…

↗
6
953030660000
Nut(661)
Loading…

↗
7
929950610000
Washer(6a1)
Loading…

↗
8
689825190000
Wire Earth Lead
Loading…

↗
9
970160601200
Bolt
Loading…

↗
10
929900610000
Washer(6a1)
Loading…

↗
11
695855401200
C.d.i. unit assembly
Loading…

↗
12
9010106M2700
Bolt
Loading…

↗
13
929900660000
Washer, plain (646)
Loading…

↗
14
689855480100
Holder
Loading…

↗
16
6E7855701900
Ignition coil assembly
Loading…

↗
19
904802516100
Grommet(656)
Loading…

↗
20
6G1823702100
Plug cap assembly
Loading…

↗
21
9046508M1300
Clamp (695)
Loading…

↗
22
689855470000
Damper
Loading…

↗
23
9048017M0800
Grommet (689)
Loading…

↗
24
6J8819600000
Rectifier & regulator assembly
Loading…

↗
26
973950601600
Bolt, hexagon deep recess
Loading…

↗
28
6E5825820000
Cap 1
Loading…

↗
