Yamaha Outboard Parts - Electrical - 40HM (1988) | Flood Marine
New Search
Parts
New Outboards
Home
40HM (1988)
Electrical

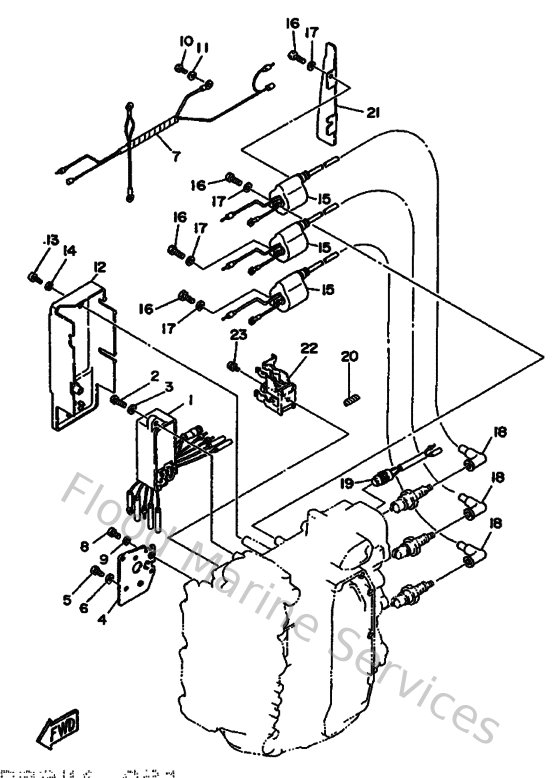

Diagram: Electrical
Parts List
Reference
Description
Price
1
6H4855402100
Cdi Unit Assembly
Loading…
↗
2
973130602500
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
5
970130601200
Bolt(gh1)
Loading…
↗
7
6H4825310100
Wire, Lead
Loading…
↗
12
6H4819160000
Cover, terminal
Loading…
↗
13
925800602500
Screw, pan head(6b0)
Loading…
↗
15
6H4855702000
Ignition coil assembly
Loading…
↗
16
973130602000
Bolt(7u8)
Loading…
↗
18
6G1823702000
Plug cap assembly
Loading…
↗
19
689825600000
Thermo switch assembly
Loading…
↗
20
9044610M0200
Tube (6e5)
Loading…
↗
23
9015906M0700
Screw, With Washer
Loading…
↗
