70BETO (1990)
Electrical

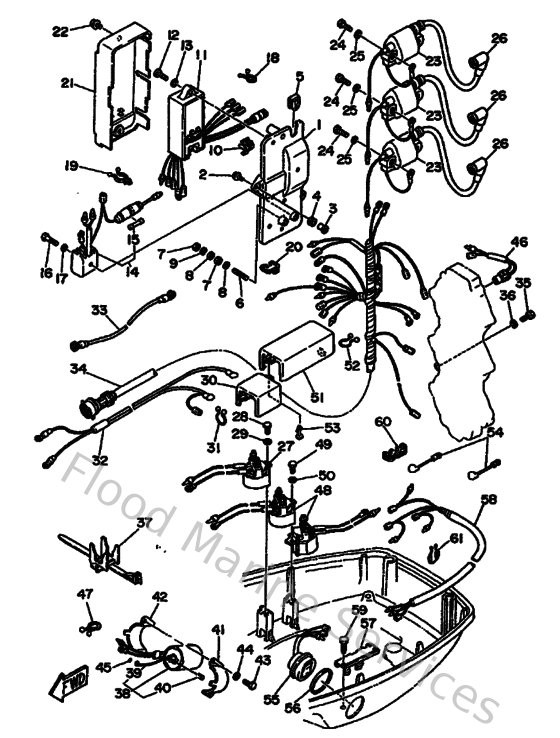

Diagram: Electrical
Parts List
Reference
Description
Price
1
6H3855420094
Bracket
Loading…
↗
2
9010506M1400
Bolt (6e0)
Loading…
↗
3
9038706M4300
Coller (6e9)
Loading…
↗
4
9048013M2400
Grommet (6e9)
Loading…
↗
5
6H3819220000
Grommet
Loading…
↗
6
9011606M0700
Bolt, stud (688)
Loading…
↗
7
953800670000
Nut
Loading…
↗
8
929900620000
Ybs66-6 washer, plain
Loading…
↗
9
929950610000
Washer(6a1)
Loading…
↗
10
9046404M1200
Clamp (6h3)
Loading…
↗
11
6H3855401100
C.d.i. unit assembly
Loading…
↗
12
978850602500
Screw, pan head(6b0)
Loading…
↗
13
929900660000
Washer, plain (646)
Loading…
↗
14
6G1819706100
Rectifier assembly
Loading…
↗
15
1E6821510000
Fuse (10a)
Loading…
↗
16
985030502500
Screw, panhead (a93)
Loading…
↗
17
929900560000
Washer, plain (646)
Loading…
↗
18
904651814700
Clamp
Loading…
↗
19
9046415M2700
Clamp(6h4)
Loading…
↗
20
9046407M1000
Clamp (6h3)
Loading…
↗
21
6H3819160000
Cover, terminal
Loading…
↗
22
978850601200
Screw, pan head(62j)
Loading…
↗
23
6H3855701000
Ignition coil assembly
Loading…
↗
24
973130602500
Bolt
Loading…
↗
26
6G1823702000
Plug cap assembly
Loading…
↗
27
688819501000
Relay assembly
Loading…
↗
28
970950601600
Bolt, hexagon deep recess
Loading…
↗
30
6H3821640000
Case 2
Loading…
↗
31
904641603900
Clamp (3y2)
Loading…
↗
32
6H3821050000
Battery cable
Loading…
↗
33
6H3821170000
Wire, lead
Loading…
↗
35
970130601200
Bolt(gh1)
Loading…
↗
37
688825940000
Clamp
Loading…
↗
38
6H3861100200
Solenoid
Loading…
↗
39
6H3861160000
Wire, Pull
Loading…
↗
40
916903001000
Pin, spring (663)
Loading…
↗
41
6H3861120000
Stay, Solenoid
Loading…
↗
42
6H3861150000
Holder Solenoid
Loading…
↗
43
973130601600
Bolt, hexagon deep recess
Loading…
↗
45
932100326100
O-ring (663)
Loading…
↗
46
688825601000
Thermo switch assembly
Loading…
↗
49
970800602000
Bolt(7u8)
Loading…
↗
54
688819490000
Wire, Lead
Loading…
↗
55
6H1825630100
Trim & tilt switch assembly
Loading…
↗
56
6E5825870000
Gasket
Loading…
↗
57
6E5836140100
Bracket
Loading…
↗
58
6H3825530000
Extension, Wire
Loading…
↗
60
9046407M0500
Clamp (6g5)
Loading…
↗
61
9046418M1400
Clamp(6h1)
Loading…
↗
