115BETO (2001)
Electrical 1

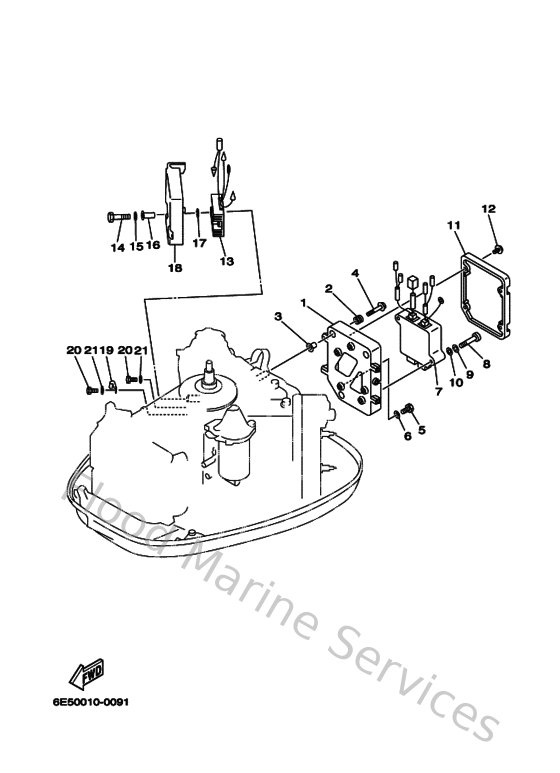

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6N785542011S
Bracket
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M5900
Bolt, with washer
Loading…
↗
5
970950601200
Bolt(gh1)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
6E5855400000
C.d.i. unit assembly
Loading…
↗
8
978800604000
Screw pan head
Loading…
↗
9
929900610000
Washer(6a1)
Loading…
↗
11
6N7855370000
Cover
Loading…
↗
12
9015906M1100
Screw, with washer(6l2)
Loading…
↗
13
6H0819600000
Rectifier & regulator assembly
Loading…
↗
14
970130604500
Bolt, hexagon
Loading…
↗
15
929030660000
Washer, plain (646)
Loading…
↗
16
9038706M7700
Collar
Loading…
↗
17
9020106M0800
Washer, plate(6e3)
Loading…
↗
18
6E5819610000
Cover
Loading…
↗
19
9046506M8600
Clamp
Loading…
↗
21
929950660000
Washer, plain (646)
Loading…
↗
