25NWH (1999)
Electrical 1

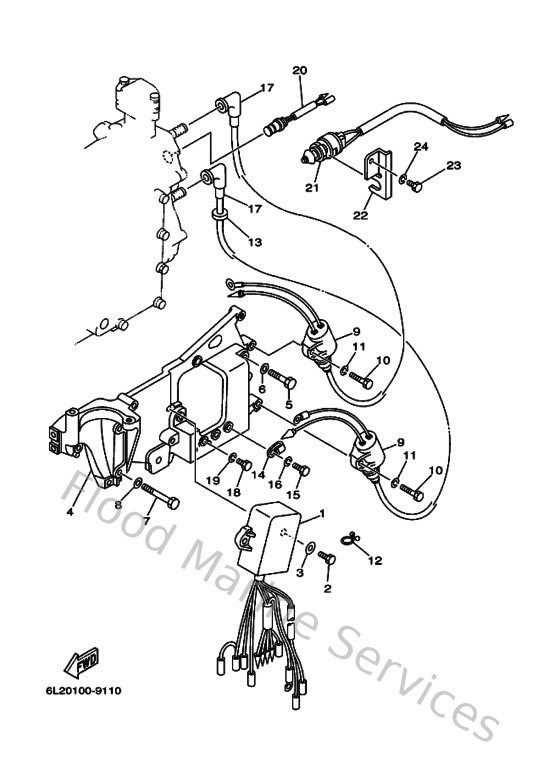

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6L2855402100
C.d.i. unit assembly
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
6L2855420294
Bracket
Loading…
↗
5
970800603000
Bolt(jf7)
Loading…
↗
7
9010106M1600
Bolt(6l2)
Loading…
↗
8
929030660000
Washer, plain (646)
Loading…
↗
9
61N855701000
Ignition coil assembly
Loading…
↗
11
929950610000
Washer(6a1)
Loading…
↗
12
9046405M1600
Clamp(6j8)
Loading…
↗
13
904802516100
Grommet(656)
Loading…
↗
14
9046506M2800
Clamp(6h4)
Loading…
↗
15
970800601200
Bolt(gh1)
Loading…
↗
17
663823700100
Plug cap assembly
Loading…
↗
18
970950601200
Bolt(gh1)
Loading…
↗
