25VMH (2001)
Electrical 1

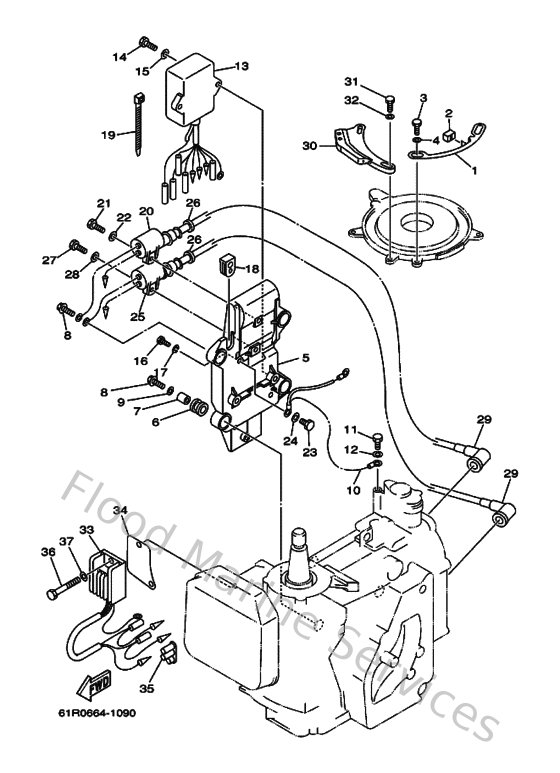

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
61N416150000
Stopper, magneto base
Loading…
↗
2
61N441940100
Cap
Loading…
↗
3
970950601000
Bolt
Loading…
↗
4
929950660000
Washer, plain (646)
Loading…
↗
5
61N855420094
Bracket
Loading…
↗
6
61N823170000
Damper, ignition coil
Loading…
↗
7
624425420000
Collar
Loading…
↗
8
9011906M9500
Bolt, with washer
Loading…
↗
9
9020106M3000
Washer, plate (6a1)
Loading…
↗
10
61N825190100
Wire, earth lead
Loading…
↗
11
970800601200
Bolt(gh1)
Loading…
↗
12
929900610000
Washer(6a1)
Loading…
↗
13
61N855401100
C.d.i. unit assembly
Loading…
↗
14
970950602000
Bolt(7u8)
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
970900601200
Bolt(gh1)
Loading…
↗
18
6H3819220000
Grommet
Loading…
↗
19
80L263970000
Band
Loading…
↗
20
6H5855700000
Ignition coil assembly
Loading…
↗
25
61N855700000
Ignition coil assembly
Loading…
↗
26
904802516100
Grommet(656)
Loading…
↗
29
6G1823702100
Plug cap assembly
Loading…
↗
31
970950501600
Bolt(6a1)
Loading…
↗
32
929900560000
Washer, plain (646)
Loading…
↗
33
6J8819600000
Rectifier & regulator assembly
Loading…
↗
35
6E5825820000
Cap 1
Loading…
↗
36
970130604500
Bolt, hexagon
Loading…
↗
37
929030660000
Washer, plain (646)
Loading…
↗
