30DEO (1999)
Electrical 1

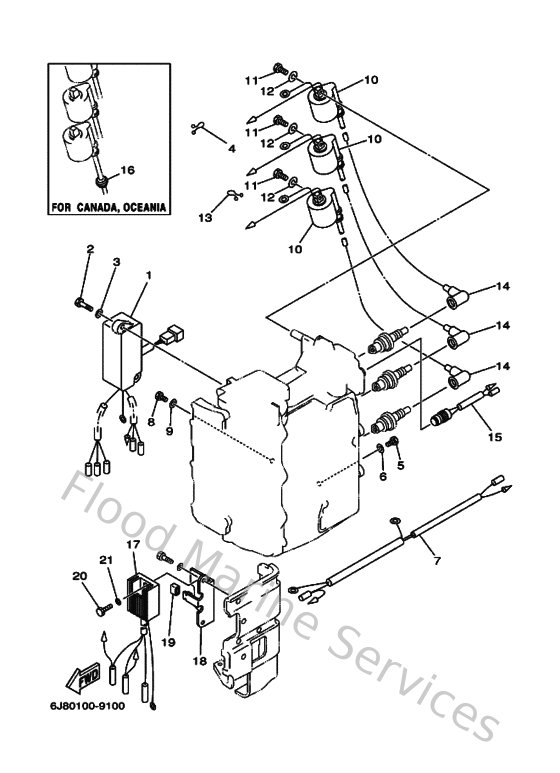

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6J885540H200
C.d.i. unit assembly
Loading…
↗
2
970950602500
Bolt
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
904641603900
Clamp (3y2)
Loading…
↗
5
970950601200
Bolt(gh1)
Loading…
↗
7
6J8825310000
Wire, lead
Loading…
↗
8
970800601200
Bolt(gh1)
Loading…
↗
10
6J8855702100
Ignition coil assembly
Loading…
↗
11
970950602000
Bolt(7u8)
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
14
6G1823702000
Plug cap assembly
Loading…
↗
15
689825600000
Thermo switch assembly
Loading…
↗
16
904802516100
Grommet(656)
Loading…
↗
