30DMH (1986)
Electrical 1

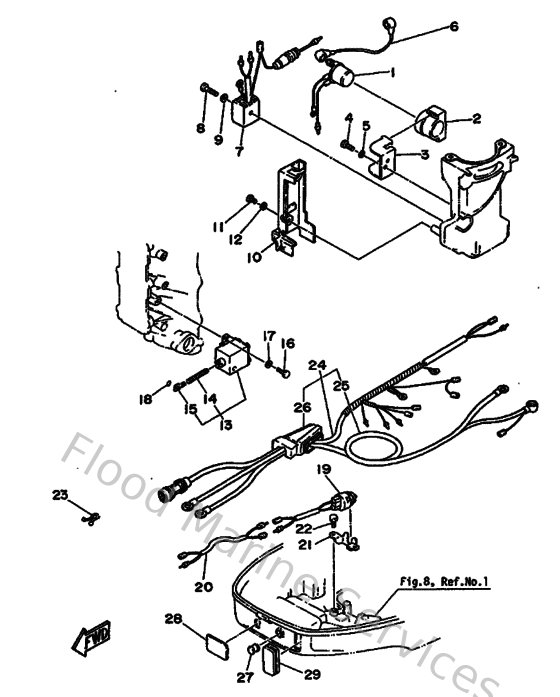

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6J8819450000
Plate, switch fitting
Loading…
↗
4
973130601600
Bolt, hexagon deep recess
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
6F5821170000
Wire, lead
Loading…
↗
7
6G1819706000
Rectifier assembly
Loading…
↗
8
985800552500
Screw, panhead (a93)
Loading…
↗
9
929900560000
Washer, plain (646)
Loading…
↗
10
6J8819160000
Cover, Terminal
Loading…
↗
11
985800501000
Screw, pan head(62x)
Loading…
↗
13
6J8861100000
Solenoid
Loading…
↗
14
6J8861160000
Wire, pull
Loading…
↗
15
682861170000
Hook, wire pull
Loading…
↗
16
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
932100326100
O-ring (663)
Loading…
↗
19
6H3825400000
Neutral switch assembly
Loading…
↗
20
6H4825530000
Extension, wire lead
Loading…
↗
21
6J8825540000
Stay, neutral switch
Loading…
↗
22
970130601200
Bolt(gh1)
Loading…
↗
23
9046408M0700
Clamp
Loading…
↗
24
6J8825800000
Wire harness assembly 2
Loading…
↗
25
66T82105J100
Battery cable
Loading…
↗
26
6J8427245000
Grommet
Loading…
↗
27
6H4427250000
Grommet 2
Loading…
↗
28
6J8427262000
Grommet
Loading…
↗
29
6J8427261000
Grommet
Loading…
↗
