40QMH (1992)
Electrical 1

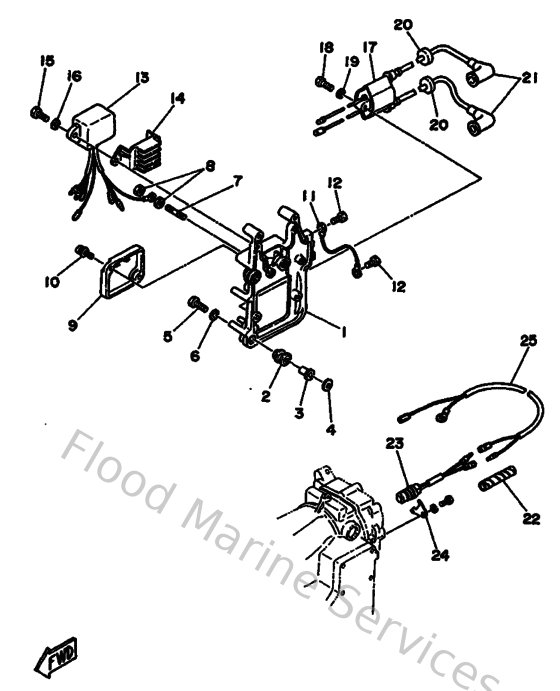

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
6R6855420094
Bracket
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
5
973950603000
Bolt(jf7)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
9011606M0700
Bolt, stud (688)
Loading…
↗
8
953800660000
Nut(661)
Loading…
↗
9
6A0819160000
Cover, Terminal
Loading…
↗
10
979850521600
Screw, pan w/ plain
Loading…
↗
11
662825190000
Wire, earth lead
Loading…
↗
13
689855402000
C.d.i. Unit Assembly
Loading…
↗
14
6A0855480000
Holder
Loading…
↗
15
973050602500
Bolt
Loading…
↗
17
689855702000
Ignition coil assembly
Loading…
↗
18
9010106M2700
Bolt
Loading…
↗
20
904802516100
Grommet(656)
Loading…
↗
21
6G1823702000
Plug cap assembly
Loading…
↗
22
9044610M0100
Tube (6e5)
Loading…
↗
23
6E9825600000
Thermoswitch Assembly
Loading…
↗
24
6E9825880000
Plate
Loading…
↗
