40VMO (2001)
Electrical 1

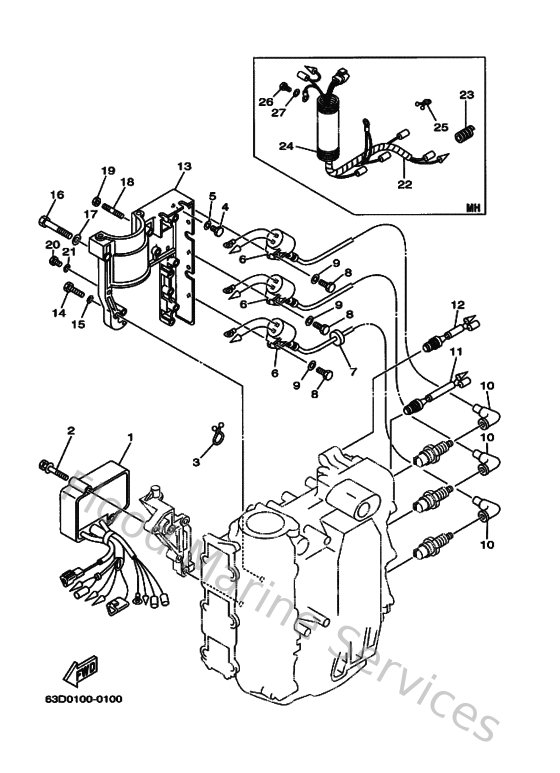

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
63D855400200
C.d.i. unit assembly
Loading…
↗
2
9011906M5100
Bolt, with washer(6h4)
Loading…
↗
3
9046415M1100
Clamp (3y2)
Loading…
↗
4
970950601400
Bolt(gj3)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
6H5855700000
Ignition coil assembly
Loading…
↗
7
904802516100
Grommet(656)
Loading…
↗
8
970950602000
Bolt(7u8)
Loading…
↗
10
6G1823702100
Plug cap assembly
Loading…
↗
11
689825600000
Thermo switch assembly
Loading…
↗
12
6H4825600000
Thermo switch assembly
Loading…
↗
22
63D825310000
Wire, lead
Loading…
↗
23
9044610M0100
Tube (6e5)
Loading…
↗
24
6G1835570000
Tube
Loading…
↗
25
9046405M1600
Clamp(6j8)
Loading…
↗
27
929950660000
Washer, plain (646)
Loading…
↗
