E40XMH (2001)
Electrical 1

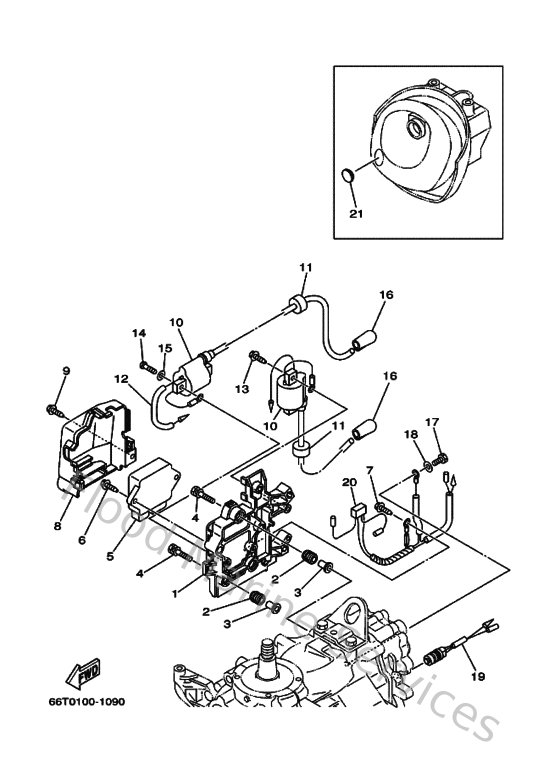

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
66T8554B0194
Bracket
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M6500
Bolt, with washer
Loading…
↗
5
66T855400100
C.d.i. unit assembly
Loading…
↗
6
9010906M8100
Bolt
Loading…
↗
7
9010906M8000
Bolt
Loading…
↗
8
66T819160100
Cover, terminal
Loading…
↗
10
66T855700000
Ignition coil assembly
Loading…
↗
11
904802516100
Grommet(656)
Loading…
↗
12
9044603MA300
Hose
Loading…
↗
14
970950602500
Bolt
Loading…
↗
15
929950660000
Washer, plain (646)
Loading…
↗
16
6E3823702100
Plug cap assembly
Loading…
↗
17
970800601200
Bolt(gh1)
Loading…
↗
19
688825601000
Thermo switch assembly
Loading…
↗
20
66T825190000
Wire, earth lead
Loading…
↗
21
6G1427250000
Grommet
Loading…
↗
