F15AMH (1998)
Electrical 1

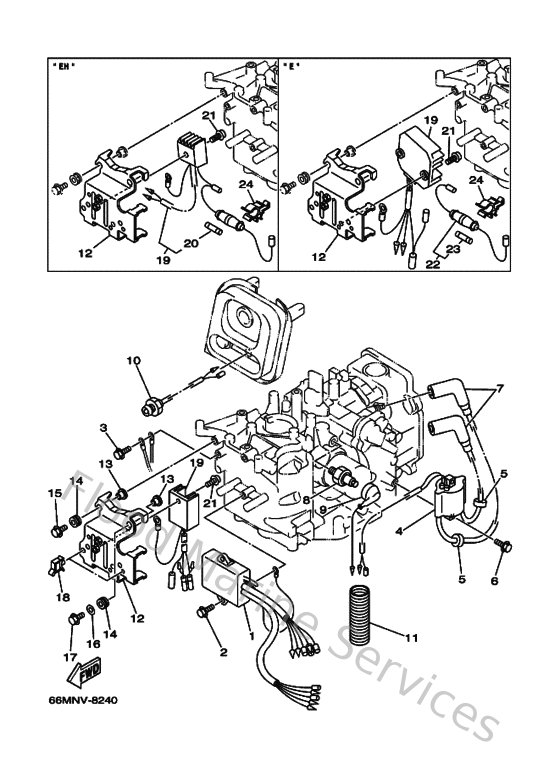

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
66M855400000
C.d.i. Unit assembly
Loading…
↗
2
975950652000
Bolt(7u8)
Loading…
↗
3
975950661600
Bolt, hexagon w/w deep recess
Loading…
↗
4
66M855700000
Ignition coil assembly
Loading…
↗
5
904802516100
Grommet(656)
Loading…
↗
6
970800602000
Bolt(7u8)
Loading…
↗
7
6G8823702000
Plug cap assembly
Loading…
↗
8
62Y825041000
Oil pressure switch assembly
Loading…
↗
9
66M821271000
Wire, lead 2
Loading…
↗
10
65W854100000
Emergency signal light assembly
Loading…
↗
11
6N7835570000
Tube
Loading…
↗
12
66M855420000
Bracket
Loading…
↗
13
9038706M0500
Collar(6h4)
Loading…
↗
14
9048013M2400
Grommet (6e9)
Loading…
↗
15
958950602000
Bolt, flange(jk3)
Loading…
↗
16
9020106M0800
Washer, plate(6e3)
Loading…
↗
17
975950652500
Bolt, hexagon w/w deep recess
Loading…
↗
18
9046409M1300
Clamp (6h1)
Loading…
↗
19
6J8819600000
Rectifier & regulator assembly
Loading…
↗
21
975950651600
Bolt, with washer(6r6)
Loading…
↗
