L150JETOL (2001)
Electrical 1

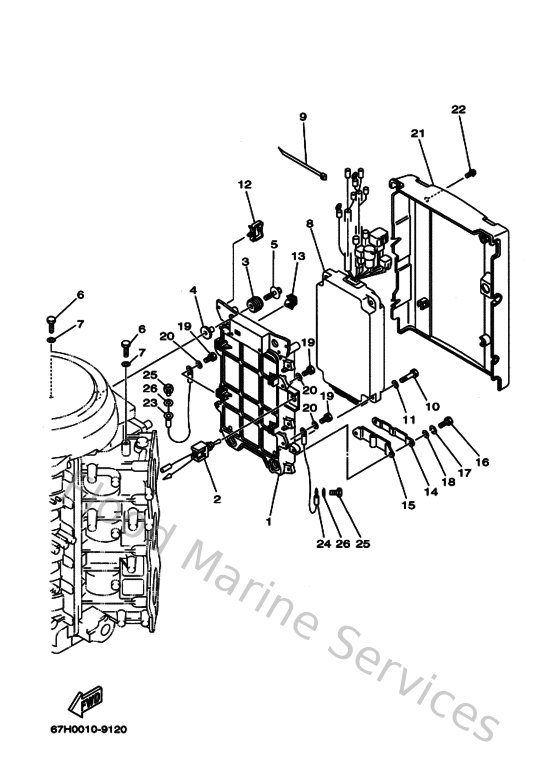

Diagram: Electrical 1
Parts List
Reference
Description
Price
1
67H855420094
Bracket
Loading…
↗
2
6R38259E0000
Switch assembly
Loading…
↗
3
9048009M1200
Grommet (6a0)
Loading…
↗
4
9038706M0300
Collar (676)
Loading…
↗
5
9011906M2800
Bolt, With Washer
Loading…
↗
6
970950601600
Bolt, hexagon deep recess
Loading…
↗
7
929950660000
Washer, plain (646)
Loading…
↗
8
67M855400100
C.d.i. Unit assembly
Loading…
↗
9
9046513M1800
Clamp
Loading…
↗
10
970130602500
Bolt(62y)
Loading…
↗
11
929030660000
Washer, plain (646)
Loading…
↗
12
904642319900
Clamp(4hm)
Loading…
↗
13
9046409M4700
Clamp(65j)
Loading…
↗
14
61A855250000
Cover
Loading…
↗
15
61A855480000
Holder
Loading…
↗
17
929950610000
Washer(6a1)
Loading…
↗
19
970950601200
Bolt(gh1)
Loading…
↗
21
67H855370000
Cover
Loading…
↗
22
9015906M0300
Screw (6g5)
Loading…
↗
23
61A825190000
Wire, Earth Lead
Loading…
↗
24
6R3825190000
Wire, earth lead
Loading…
↗
