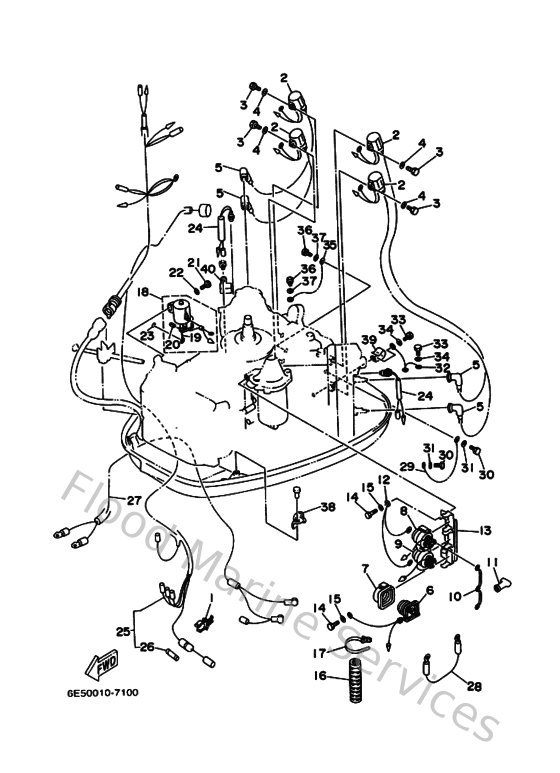

Diagram: Electrical 2

Diagram

Parts List

Reference
Description
Price


1
6G5821520000
Holder, fuse
Loading…

↗
2
6R3855700100
Ignition coil assembly
Loading…

↗
3
970950602000
Bolt(7u8)
Loading…

↗
4
929950660000
Washer, plain (646)
Loading…

↗
5
6G1823702100
Plug cap assembly
Loading…

↗
6
61A819410000
Starter relay assembly
Loading…

↗
7
689819521000
Holder, starter relay
Loading…

↗
8
6E5819500000
Relay assembly
Loading…

↗
9
6E58195A0000
Relay assembly
Loading…

↗
10
6G5871491000
Connector
Loading…

↗
11
6G5821191000
Cover, lead wire
Loading…

↗
12
6E5821160000
Wire, minus lead
Loading…

↗
13
6E5819482200
Bracket
Loading…

↗
14
970950601600
Bolt, hexagon deep recess
Loading…

↗
16
6N7835570000
Tube
Loading…

↗
17
9046513M3000
Clamp
Loading…

↗
18
6E5861100200
Solenoid
Loading…

↗
19
6E5861160100
Wire, pull
Loading…

↗
20
916903001000
Pin, spring (663)
Loading…

↗
23
932100326100
O-ring (663)
Loading…

↗
24
688825601000
Thermo switch assembly
Loading…

↗
26
682821510100
Fuse
Loading…

↗
27
6E5821051200
Battery cable
Loading…

↗
28
6E5821170100
Wire, lead
Loading…

↗
29
6R3825190000
Wire, earth lead
Loading…

↗
30
970950601200
Bolt(gh1)
Loading…

↗
31
929900660000
Washer, plain (646)
Loading…

↗
32
6E5825311000
Wire, lead
Loading…

↗
35
662825190000
Wire, earth lead
Loading…

↗
36
970800601200
Bolt(gh1)
Loading…

↗
38
9046512M2500
Clamp (6e5)
Loading…

↗
39
9046505M8700
Clamp
Loading…

↗
40
9046508M8900
Clamp
