250AETOXLX (2000)
Electrical 2

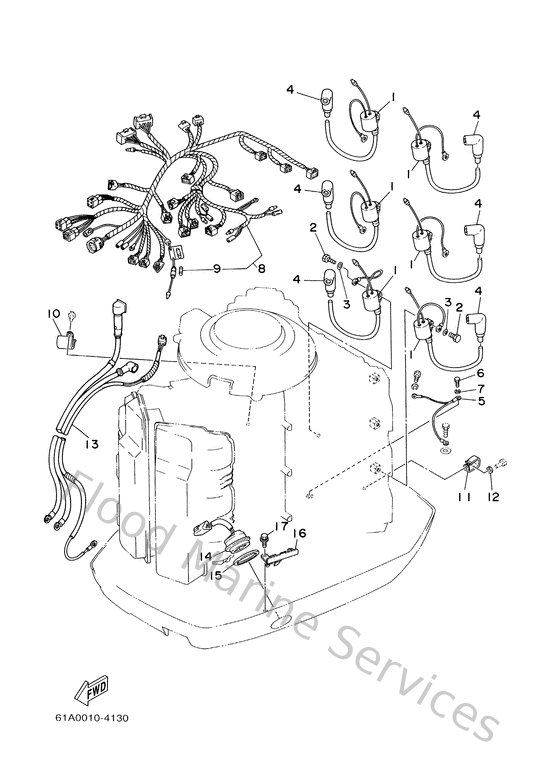

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
61A855700000
Ignition coil assembly
Loading…
↗
2
970130602000
Bolt(62y)
Loading…
↗
3
929030660000
Washer, plain (646)
Loading…
↗
4
6E3823702100
Plug cap assembly
Loading…
↗
5
61A825310000
Wire, lead
Loading…
↗
6
970800601200
Bolt(gh1)
Loading…
↗
7
929950660000
Washer, plain (646)
Loading…
↗
8
61A825900300
Wire Harness Assembly
Loading…
↗
9
682821510000
Fuse
Loading…
↗
10
9046508M8900
Clamp
Loading…
↗
11
9046505M8700
Clamp
Loading…
↗
13
61A821050000
Battery cable
Loading…
↗
14
6R3825630100
Trim & tilt switch assembly
Loading…
↗
15
6E5825870000
Gasket
Loading…
↗
16
61A836140000
Bracket
Loading…
↗
17
970950601200
Bolt(gh1)
Loading…
↗
