Yamaha Outboard Parts - Electrical 2 - 25BMH (2001) | Flood Marine

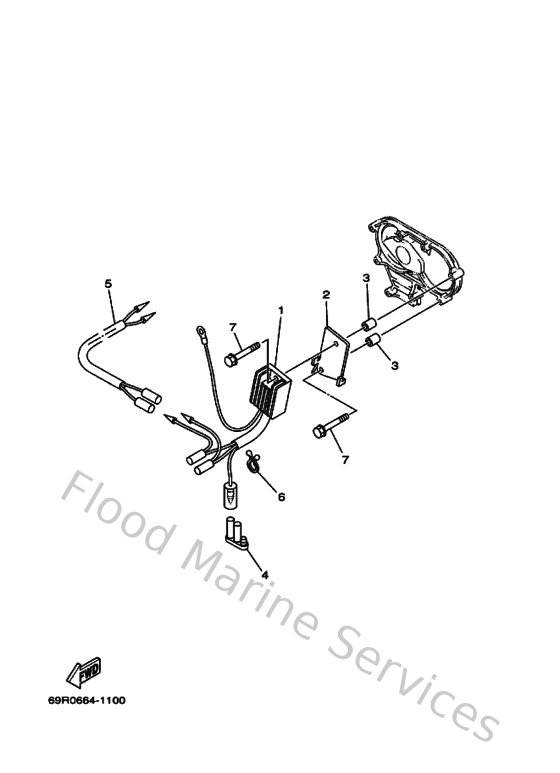

Diagram: Electrical 2

Diagram

Parts List

Reference
Description
Price


1
6J8819600000
Rectifier & regulator assembly
Loading…

↗
2
69R819150000
Plate, regulator fitting
Loading…

↗
3
903870650400
Collar(650)
Loading…

↗
4
6E5825820000
Cap 1
Loading…

↗
5
69R825530000
Extension, wire lead
Loading…

↗
6
9046408M0700
Clamp
Loading…

↗
