50HM (1998)
Electrical 2

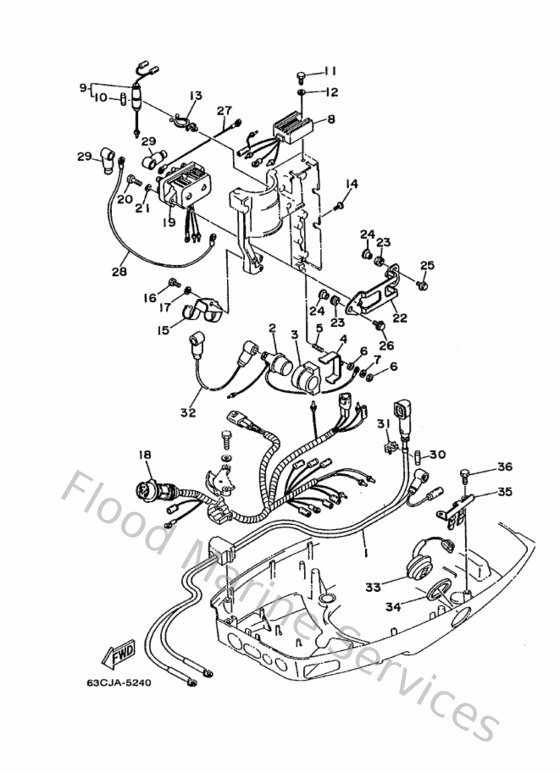

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6H4821050200
Battery cable
Loading…
↗
2
6G1819411000
Starter relay
Loading…
↗
3
6H4819520000
Holder, relay
Loading…
↗
4
6H4819450000
Plate, switch fitting
Loading…
↗
5
9011606M2200
Bolt, stud (6h1)
Loading…
↗
6
953800660000
Nut(661)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
6H2819600000
Rectifier & regulator assembly
Loading…
↗
9
6H4821500000
Fuse holder assembly
Loading…
↗
10
682821510100
Fuse
Loading…
↗
11
970950601400
Bolt(gj3)
Loading…
↗
13
9046415M2700
Clamp(6h4)
Loading…
↗
14
9033805M1200
Plug(6h4)
Loading…
↗
15
63D825940000
Clamp
Loading…
↗
16
970950601200
Bolt(gh1)
Loading…
↗
18
63D825901000
Wire harness assembly
Loading…
↗
19
6H1819500000
Relay aasy
Loading…
↗
20
970950602500
Bolt
Loading…
↗
22
6H4819452000
Plate, switch fitting
Loading…
↗
23
9048013M2400
Grommet (6e9)
Loading…
↗
24
9038706M0500
Collar(6h4)
Loading…
↗
25
9010506M1500
Bolt (6e0)
Loading…
↗
26
9010506M1600
Bolt (6e0)
Loading…
↗
27
6H5819490000
Wire, lead
Loading…
↗
28
6H2819491100
Wire, lead
Loading…
↗
29
682821190100
Cover, lead wire
Loading…
↗
30
6H3821510000
Fuse (10a)
Loading…
↗
31
9046407M2000
Clamp(6h0)
Loading…
↗
32
6H4821170000
Wire, lead
Loading…
↗
33
63D825631100
Trim & tilt switch assembly
Loading…
↗
34
6E5825870000
Gasket
Loading…
↗
35
6R3836140000
Bracket
Loading…
↗
36
970950601600
Bolt, hexagon deep recess
Loading…
↗
